Mody Pumps

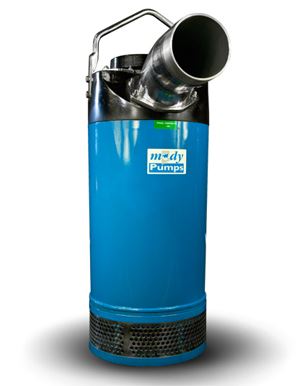

M506T Mody Pump, Dewatering Pump (5 HP, 240/480 V, 3" Discharge, Three Phase, 14.2/7.1 Amps)

M506T Mody Pump, Dewatering Pump (5 HP, 240/480 V, 3" Discharge, Three Phase, 14.2/7.1 Amps)

SKU:M506T

Precio habitual $0.00 USD
Precio habitual Precio de oferta $0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Mody M506T, 5 HP, 240/480 V, 3" Discharge, Three Phase, 14.2/7.1 Amps
Applications
PORTABLE ELECTRIC SUBMERSIBLE PUMP FOR CORROSIVE & ABRASIVE APPLICATIONS
Features
2-pole induction continuous rated motor with squirrel cage rotor
Max. temperature of the pump liquid : 104F/40C
Max. start/stop per hour : 15
Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft. (15m) length standard.
Epoxy coated Aluminum Outer Casing

Specifications

Brand
Mody
Catalog Number
M506T
Type
Submersible Dewatering Pump
Series
Industrial Series
Description
Heavy Duty Dewatering
HP
5
Voltage
240/480
Discharge
3"
Phase
Three
Amperage
14.2/7.1
Height
29.5"
Width
13"
Hole Size
0.25"
Weight
132 lbs.
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
