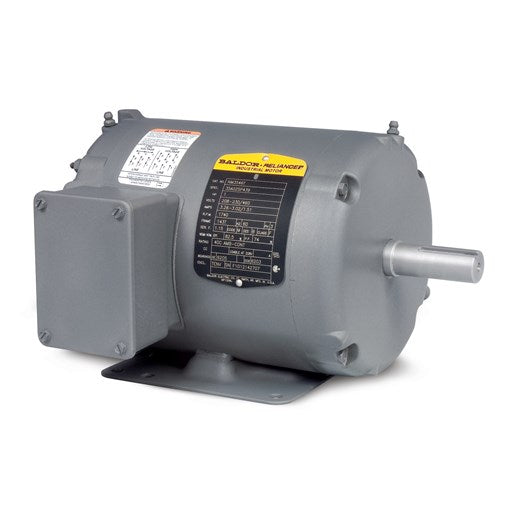

M3455 Baldor Industrial Motor, Three Phase, TEFC, 48 Frame (1/4 HP, 1200 RPM)

Baldor Motor M3455, HP: 1/4, RPM: 1200, Volts: 230/460, NEMA Frame : 48, "C" Dim : 10.73, Full Load Amps : 0.7, Enclosure: TEFC, Foot Mounted, Motor Applications: Pumps, Compressors, Fans

Applications

Pumps, compressors, fans, conveyors, machine tools and othergeneral purpose three phase applications.

Features

Suitable for mounting in any position. Ball bearings, heavy-gauge steeland cast-iron frames, and gasketed conduit boxes. Class F insulation, 1.15 servicefactor, low-loss electrical grade lamination steel. EM Super-E motors have NEMAPremium efficiency and 3 year warranty. Motors with TR suffix have roller bearingsfor heavy belted loads.

Tech Specs.
Brand	Baldor General Purpose Motor
Model Number	M3455
HP	1/4
RPM	1200
Volts	230/460
"C" Dim	10.73
NEMA Frame	48
Full Load Amps	0.7
Full Load Efficiency	68
Apx. Wt. (lb)	19
EISA Status	C
Phase	Three Phase
Motor Mount	Foot Mounted
Enclosure	TEFC
Type	General Purpose Industrial Motor
Warranty
