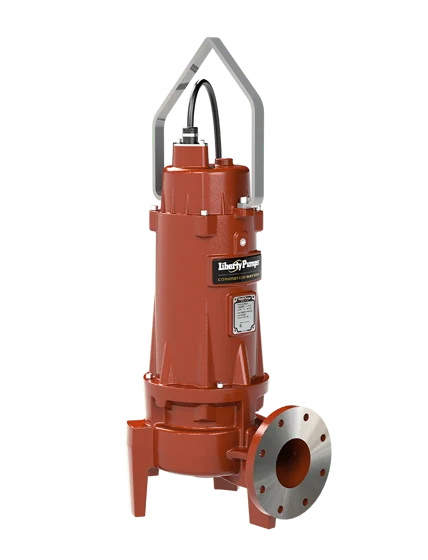

Liberty LSV202-3, LSV200 Series, Manual Submersible Sewage Pump (2 HP, 200/230 Volts, 1 Phase, 14.2 Amps, 4" Horizontal Flanged Discharge, 350 GPM Max, 24 ft Max Head, 3" Solids Handling, 35 ft Cord, Vortex Impeller)
Liberty LSV202-3, LSV200 Series, Manual Submersible Sewage Pump (2 HP, 200/230 Volts, 1 Phase, 14.2 Amps, 4" Horizontal Flanged Discharge, 350 GPM Max, 24 ft Max Head, 3" Solids Handling, 35 ft Cord, Vortex Impeller)
SKU:LSV202-3
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Liberty LSV202-3, LSV200 Series, Manual Submersible Sewage Pump (2 HP, 200/230 Volts, 1 Phase, 14.2 Amps, 4" Horizontal Flanged Discharge, 350 GPM Max, 24 ft Max Head, 3" Solids Handling, 35 ft Cord, Vortex Impeller)
The LSV200 pump is to be used for handling septic tank effluent, sewage, and drain (storm) water.
Features
- 3" solids handling
- Vortex impeller
- 4" ANSI horizontal discharge
- Cast iron construction with epoxy powder coating
- Stainless steel hardware
- Silicon Carbide/Silicon Carbide seal
- Single seal
- Buna-N O-ring seals
- 35 ft quick-connect power cord
- Thermal protector on single phase model
- Cast iron impeller
- 104°F (40°C) Continuous duty maximum fluid temperature
- Optional 4" to 3" ANSI adapter kit K002027 (sold separately)
Control Panel Options
Below are Liberty control panels that can be used with this pump.
- SXH24=3
- AE24H=3
- AE24H=4
