Sta-Rite Pumps

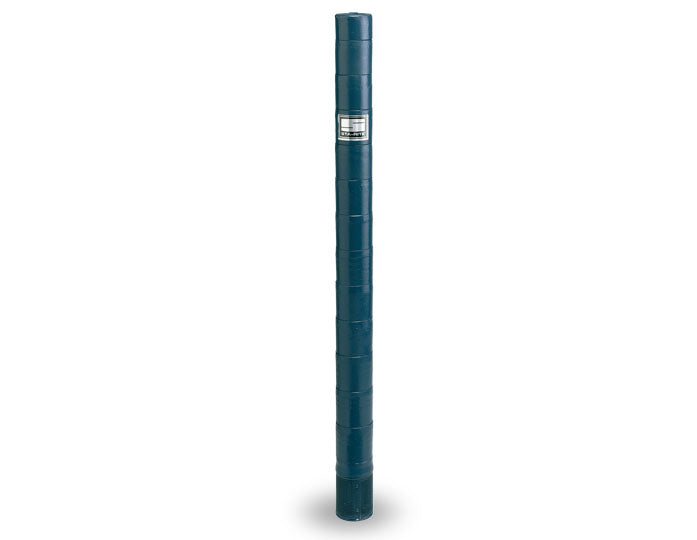

L70J4-05 STA-RITE 4" Submersible Pump - End Only (5 Required HP, 70GPM @ 175ft Of Head, 12 Stages, 2" Discharge)

L70J4-05 STA-RITE 4" Submersible Pump - End Only (5 Required HP, 70GPM @ 175ft Of Head, 12 Stages, 2" Discharge)

SKU:L70J4-05

Precio habitual $1,322.82 USD
Precio habitual $3,685.00 USD Precio de oferta $1,322.82 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

STA-RITE L70J4, 5 Required HP, 70GPM @ 175ft Of Head, 12 Stages, 2" Discharge,

Applications
Residential, industrial, commercial, multiple housing and farm use.
Features
Heavy duty cast iron discharge provides smooth water passage to column pipe
Standard NPT threads
Glass-reinforced polycarbonate impellers resist abrasives and provide smooth water passages for minimum friction loss. Ensures optimum pump efficiency
Bronze upthrust bearing provides positive momentary upthrust protection during start-up
Efficient hydraulic intake design minimuzes entrance losses, ensuring maximum pump performance
Precision straightened stainless steel pump shaft
Stainless steel pump/motor coupling
Stainless steel intake screen offers maximum corrosion resistance

Specifications

Brand
STA-RITE
Model Number
L70J4
Type
4" Submersible Pump
STA-RITE Series
70 GPM Series
Required HP
5
GPM @ ft of head
70GPM @ 175ft
Stages
12
Discharge
2"
Required Motor Diameter
4"
Contents
Pump End Only
Weight
60
Length
47-1/32
Warranty
1 Year
Notes & Pump Curve
see Support Documents
Pump Manual
see Support Documents
