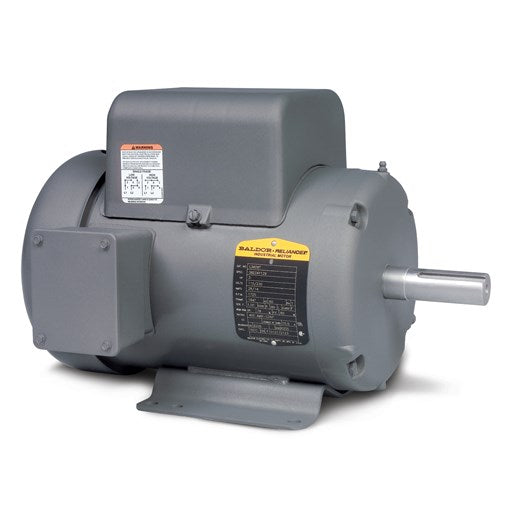

L3514 Baldor Single Phase Motor, TEFC, 56/56H Frame (1 1/2 HP, 1800 RPM)

Baldor Motor L3514, HP: 1 1/2, RPM: 1800, Volts: 115/230, NEMA Frame : 56/56H, "C" Dim : 13.81, Full Load Amps : 8, Enclosure: TEFC, Foot Mounted, Motor Applications: Pumps, Compressors, Fans

Applications

Compressors, pumps, fans, farm equipment, conveyors, materialhandling equipment, machine tools and others.

Features

Heavy gauge steel frames and a heavy duty base seam welded to theframe, ball bearings, a Snap Action starting switch and gasketed conduit box andcapacitor cover.

Tech Specs.
Brand	Baldor Single Phase General Purpose Motor
Model Number	L3514
HP	1 1/2
RPM	1800
Volts	115/230
"C" Dim	13.81
NEMA Frame	56/56H
Full Load Amps	8
Full Load Efficiency	75.5
Apx. Wt. (lb)	48
EISA Status	C
Phase	Single Phase
Motor Mount	Foot Mounted
Enclosure	TEFC
Type	General Purpose Industrial Motor
