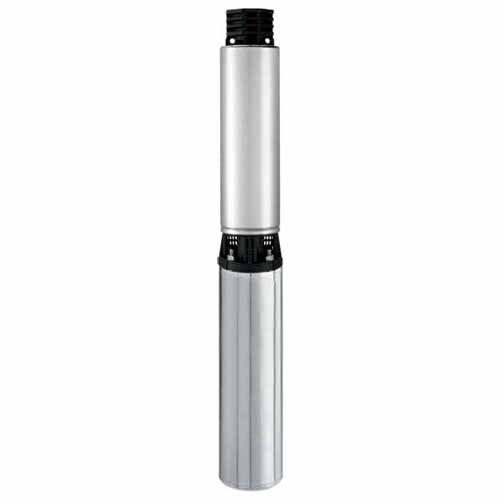

L20P4GJ-06 Pentair Sta-Rite 4" Submersible Pump - End Only (JP Series, 2 HP, 20 GPM, 12 Stages, 1-1/4" NPT Discharge, Motor not included)
L20P4GJ-06 Pentair Sta-Rite 4" Submersible Pump - End Only (JP Series, 2 HP, 20 GPM, 12 Stages, 1-1/4" NPT Discharge, Motor not included)
[COUNT] shoppers are looking at this right now
No reviews
SKU:L20P4GJ-06
Precio habitual
$781.47 USD
Precio habitual
$1,954.00 USD
Precio de oferta
$781.47 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
View price in cart
No se pudo cargar la disponibilidad de retiro
Sta-Rite Pumps L20P4GJ, 4" Submersible Pump - End Only Type, 2 HP, 12 Stages, 1-1/4" NPT Discharge Size,
| Applications |
| Water systemsffor residential, industrial, commercial, multiple housing and farm use. |
| Features |
| Proven Staging System: Our proven SignaSeal staging system incorporates a harder-than-sand ceramic wear surface that when incorporated with our floating impeller design, greatly reduces problems with abrasives, sand lock-up and running dry. |
| Discharge: Corrosion-resistant fiberglass reinforced thermoplastic for durability in aggressive water. Large octagon wrench area for ease of installation. |
| Discharge Bearing: Exclusive self-lubricating Nylatron bearing resists wear from sand. |
| Intake: Corrosion-resistant fiberglass reinforced thermoplastic for durability in aggressive water. |
| Shaft: Positive drive from 7/16" hexagonal heavy-duty 300 grade stainless steel. |
| Coupling: Stainless steel press fit to pump shaft. Couples to all standard NEMA motors. |
| Shell: Crimped shell. |
| Hardware: All screws, washers and nuts are corrosion-resistant 300 grade stainless steel. |
| Check Valve: Spring-loaded check valve. |
| Cable Guard: Corrosion-resistant stainless steel guard protects motor leads. Tapered ends prevent pump from catching on well. |
| Intake Screen: Molded-in screen. |
|
Specifications |
|
|
Brand
|
Sta-Rite Pumps
|
|
Catalog Number
|
L20P4GJ
|
|
Type
|
4" Submersible Pump - End Only
|
|
Series
|
JP
|
|
HP
|
2
|
|
Stages
|
12
|
|
Phase
|
3
|
|
Voltage
|
230
|
|
Motor (Not included)
|
P43B0020A3
|
|
GPM
|
20
|
|
Length (inches)
|
20-1/4
|
|
Discharge Size
|
1-1/4" NPT
|
|
Shell
|
Stainless steel
|
|
Diameter
|
3-7/8"
|
|
Discharge
|
Fiberglass-reinforced thermoplastic
|
|
Notes
|
See support documents
|
|
