U.S. Motors

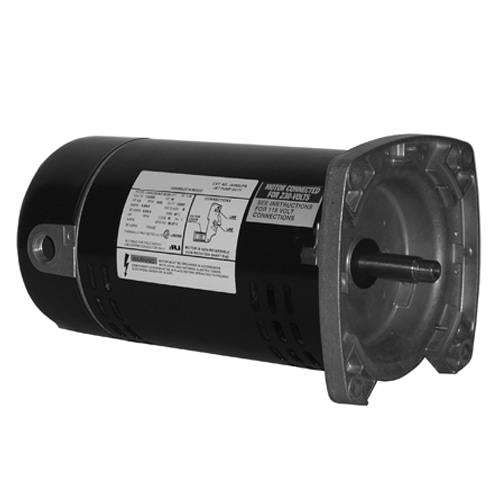

JS100UPR U.S. Motors Jet Pump Motor (1 HP, 48Y Frame, Square Flange, 3600 RPM)

JS100UPR U.S. Motors Jet Pump Motor (1 HP, 48Y Frame, Square Flange, 3600 RPM)

JS100UPR

$261.96 USD
$261.96 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson JS100UPR, HP: 1, RPM: 3600, Volts: 115/230, Frame: 48Y, Motor Face: Square Flange, Enclosure: ODP, Type: Single Phase Jet, Booster and Centrifugal Pump Motor, Motor Start: Capacitor Start ,

Applications
For jet pumps, booster pumps, centrifugal pumps, lawn sprinkler pumps.
Features
303 Stainless Steel Shaft; C-Face: 7/16-20 UNF2A thread; Square Flange: 1/2-20 UNC-2A thread; Ball Bearings (Locked Drive End Bearing); Continuous Duty; 60 Hertz; E-Z Access Motor Cover; 40C Ambient; Automatic Reset Thermal Overload Protector; Round Frame (Without Base), NEMA 56C C-Face or Square Flange Mounting; Power Leads Supplied For Proper Connection To Pressure Switch; Voltage Selector Switch (Catalog Numbers Ending With "-2V" and "UPR")

Tech Specs.

Brand
U.S. Motors/Emerson Pump Motor
Model Number
JS100UPR
HP
1
RPM
3600
Volts
115/230
SF
1.25
Frame
48Y
Full Load Amps
14.8/7.4
"C" Dim.
12.95
Apx. Wt. (lb)
23
Motor Face
Square Flange
Phase
Single
Motor Mount
Footless
Enclosure
ODP
Type
Single Phase Jet, Booster and Centrifugal Pump Motor
Notes
Two Compartment, E-Z Access Motor Cover
Motor Start
Capacitor Start

Ver todos los detalles
