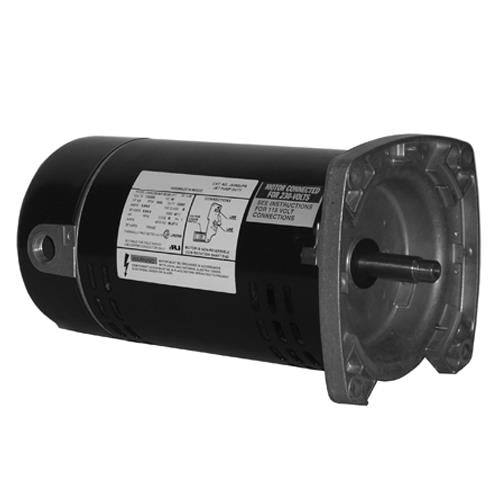

JS075UPR U.S. Motors Jet Pump Motor (3/4 HP, 48Y Frame, Square Flange, 3600 RPM)

JS075UPR U.S. Motors Jet Pump Motor (3/4 HP, 48Y Frame, Square Flange, 3600 RPM)

JS075UPR

$197.78 USD
$197.78 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson JS075UPR, HP: 3/4, RPM: 3600, Volts: 230/115, Frame: 48Y, Motor Face: Square Flange, Enclosure: ODP, Type: Single Phase Jet, Booster and Centrifugal Pump Motor, Motor Start: Capacitor Start ,

Applications
For jet pumps, booster pumps, centrifugal pumps, lawn sprinkler pumps.
Features
303 Stainless Steel Shaft; C-Face: 7/16-20 UNF2A thread; Square Flange: 1/2-20 UNC-2A thread; Ball Bearings (Locked Drive End Bearing); Continuous Duty; 60 Hertz; E-Z Access Motor Cover; 40C Ambient; Automatic Reset Thermal Overload Protector; Round Frame (Without Base), NEMA 56C C-Face or Square Flange Mounting; Power Leads Supplied For Proper Connection To Pressure Switch; Voltage Selector Switch (Catalog Numbers Ending With "-2V" and "UPR")

Tech Specs.

Brand
U.S. Motors/Emerson Pump Motor
Model Number
JS075UPR
HP
3/4
RPM
3600
Volts
230/115
SF
1.27
Frame
48Y
Full Load Amps
5.9/11.8
"C" Dim.
11.71
Apx. Wt. (lb)
20
Motor Face
Square Flange
Phase
Single
Motor Mount
Footless
Enclosure
ODP
Type
Single Phase Jet, Booster and Centrifugal Pump Motor
Notes
Two Compartment, E-Z Access Motor Cover
Motor Start
Capacitor Start
