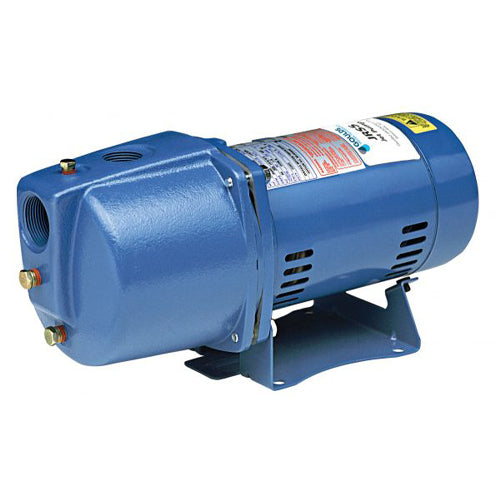

JRS5H Goulds Pumps Shallow Well Jet Pump (1/2 HP, Single Phase, 115/230 Volts)

JRS5H Goulds Pumps Shallow Well Jet Pump (1/2 HP, Single Phase, 115/230 Volts)

👁️ [COUNT] People are currently viewing this product.

JRS5H

$1,459.20 USD
$2,432.00 USD $1,459.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

Goulds Pumps JRS5H, Goulds Shallow Well Jet Pumps Type, 1/2 HP, Single Phase, 115/230 Volts,
Applications
Homes, Cottages, Booster service
Features
Compact: Design has an integral shallow well jet built into the casing, which eliminates the need for a separate shallow well adapter.
Basic Pump Unit: Includes pump with integral shallow well jet (nozzle and venturi), motor, pressure switch and tubing.
NOW NSF LISTED!! - DRINKING WATER NSF / ANSI 61 & 372
Back pullout design allows disassembly of pump for service without disturbing piping.
Two compartment motor for easy access to motor wiring and replaceable components.
Nozzle clean out plug in pump case
Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning. Premium O-ring design fittings need only be hand tight to seal.
O-ring casing seal
Drain Plug: For ease of winterizing and maintenance.
Seal Housing: Engineered composite. Corrosion and abrasion resistant.
Impeller: F.D.A. compliant, glass filled engineered composite. Corrosion and abrasion resistant. Tubing and Fittings: F.D.A. compliant engineered plastic is corrosion and U.V. resistant. Powered for Continuous Operation: Pump ratings are within the motor manufacturers recommended working limits. Can be operated continuously without damage. Corrosion Resistant: Electro-coat paint process is applied inside and out, then baked on. Excellent Air Handling Ability: After initial priming the pump has the ability to reprime itself even when air gets into the system. Pumping resumes once the water level rises above the foot valve. NSF Listed: The first NSF listed jet pumps in the industry. All jet pumps and shallow well components only, deep well components are not listed.

Specifications

Brand
Goulds Pumps
Catalog Number
JRS5H
Type
Goulds Shallow Well Jet Pumps
Series
JRS
HP
1/2
Phase
Single
Volts
115/230
RPM
3500
Suction
1-1/4"
Discharge
1"
Max Temp (F)
140
Discharge Pressure
20-50 PSI
Notes
See Support Documents
