U.S. Motors

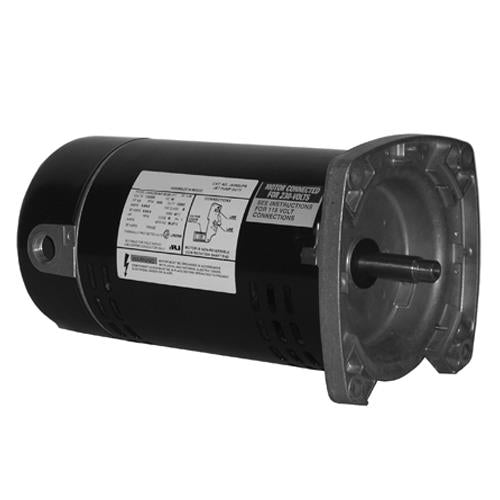

JJ0502-2V U.S. Motors Jet Pump Motor (1/2 HP, 56J Frame, C-Face, 3600 RPM)

JJ0502-2V U.S. Motors Jet Pump Motor (1/2 HP, 56J Frame, C-Face, 3600 RPM)

JJ0502-2V

$193.64 USD
$193.64 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson JJ0502-2V, HP: 1/2, RPM: 3600, Volts: 115/230, Frame: 56J, Motor Face: C-Face, Enclosure: ODP, Type: Single Phase Jet, Booster and Centrifugal Pump Motor, Motor Start: Capacitor Start ,
Applications
For jet pumps, booster pumps, centrifugal pumps, lawn sprinkler pumps.
Features
303 Stainless Steel Shaft; C-Face: 7/16-20 UNF2A thread; Square Flange: 1/2-20 UNC-2A thread; Ball Bearings (Locked Drive End Bearing); Continuous Duty; 60 Hertz; E-Z Access Motor Cover; 40C Ambient; Automatic Reset Thermal Overload Protector; Round Frame (Without Base), NEMA 56C C-Face or Square Flange Mounting; Power Leads Supplied For Proper Connection To Pressure Switch; Voltage Selector Switch (Catalog Numbers Ending With "-2V" and "UPR")

Tech Specs.

Brand
U.S. Motors/Emerson Pump Motor
Model Number
JJ0502-2V
HP
1/2
RPM
3600
Volts
115/230
SF
1.6
Frame
56J
Full Load Amps
9.6/4.8
"C" Dim.
13
Apx. Wt. (lb)
25
Motor Face
C-Face
Phase
Single
Motor Mount
Footless
Enclosure
ODP
Type
Single Phase Jet, Booster and Centrifugal Pump Motor
Notes
Two Compartment, E-Z Access Motor Cover
Motor Start
Capacitor Start
