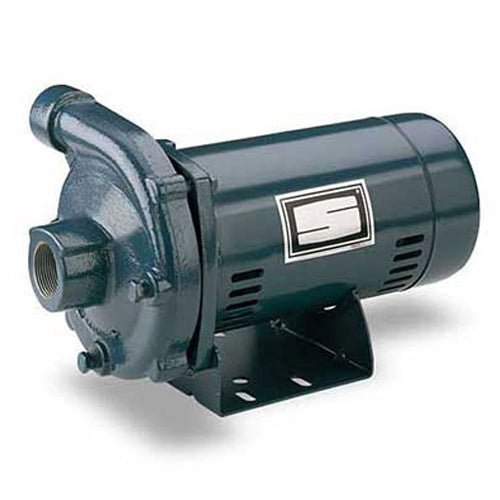

JHF3-51H Sta-Rite Pumps General Purpose Centrifugal Pump (1-1/2 HP, 1-1/4" Suction, 1" Discharge, 208-230/460 Voltage, 3 Phase, High Head)

Sta-Rite Pumps JHF3-51H, General Purpose Centrifugal Pump Type, 1-1/2 HP, 1-1/4" Suction, 1" Discharge, 208-230/460 Voltage, 3 Phase, High Head Type,

Applications
Water systems and sprinkling for homes, farms and industry.
Features
1/3 through 2-1/2 HP: High head and medium head models, with heavy-duty motors, easy service design and four- position discharge.
Drain Port: Provided for easy winterizing.
Easy Serviceability: All models include replaceable wear ring and feature back pull-out design.
J Series with Noryl impellers: Abrasion-resistant for normal applications with working temperatures to 140F.
JB Series with Silicon Bronze: JB pumps equipped with shaft seals rated for temperatures to 225F.
Impeller: J Series Noryl
Impeller: JB Series Silicon

Specifications
Brand	Sta-Rite Pumps
Catalog Number	JHF3-51H
Type	General Purpose Centrifugal Pump
Series	J series
Model Number	JHF3
HP	1-1/2
Suction	1-1/4"
Discharge	1"
Voltage	208-230/460
Phase	3
Approx Weight (lbs.)	49
Type	High Head
Construction	Cast Iron
Mechanical Seal	Carbon/ceramic, Buna-N

Support Documents (pdf)
