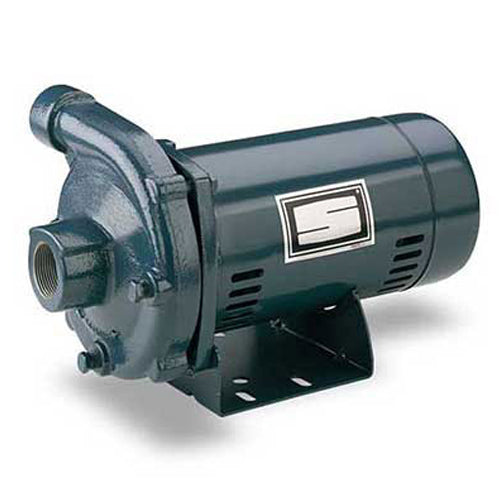

JBMG3-41S Sta-Rite Pumps General Purpose Centrifugal Pump (2 HP, 1-1/4" Suction, 1-1/4" Discharge, 208-230/460 Voltage, 3 Phase, Medium Head)

Sta-Rite Pumps JBMG3-41S, General Purpose Centrifugal Pump Type, 2 HP, 1-1/4" Suction, 1-1/4" Discharge, 208-230/460 Voltage, 3 Phase, Medium Head Type,

Applications
Water systems and sprinkling for homes, farms and industry.
Features
1/3 through 2-1/2 HP: High head and medium head models, with heavy-duty motors, easy service design and four- position discharge.
Drain Port: Provided for easy winterizing.
Easy Serviceability: All models include replaceable wear ring and feature back pull-out design.
J Series with Noryl impellers: Abrasion-resistant for normal applications with working temperatures to 140F.
JB Series with Silicon Bronze: JB pumps equipped with shaft seals rated for temperatures to 225F.
Impeller: J Series Noryl
Impeller: JB Series Silicon

Specifications
Brand	Sta-Rite Pumps
Catalog Number	JBMG3-41S
Type	General Purpose Centrifugal Pump
Series	JB Series
Model Number	JBMG3
HP	2
Suction	1-1/4"
Discharge	1-1/4"
Voltage	208-230/460
Phase	3
Approx Weight (lbs.)	66
Type	Medium Head
Construction	Cast Iron
Mechanical Seal	Carbon/ceramic, Buna-N

Support Documents (pdf)
