Sta-Rite Pumps

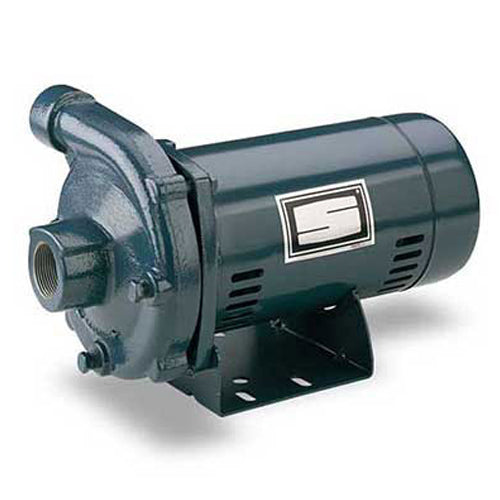

JBMD3-57S Sta-Rite Pumps General Purpose Centrifugal Pump (3/4 HP, 1" Suction, 1" Discharge, 208-230/460 Voltage, 3 Phase, Medium Head)

JBMD3-57S Sta-Rite Pumps General Purpose Centrifugal Pump (3/4 HP, 1" Suction, 1" Discharge, 208-230/460 Voltage, 3 Phase, Medium Head)

SKU:JBMD3-57S

Precio habitual $885.21 USD
Precio habitual $1,817.00 USD Precio de oferta $885.21 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Sta-Rite Pumps JBMD3-57S, General Purpose Centrifugal Pump Type, 3/4 HP, 1" Suction, 1" Discharge, 208-230/460 Voltage, 3 Phase, Medium Head Type,
Applications
Water systems and sprinkling for homes, farms and industry.
Features
1/3 through 2-1/2 HP: High head and medium head models, with heavy-duty motors, easy service design and four- position discharge.
Drain Port: Provided for easy winterizing.
Easy Serviceability: All models include replaceable wear ring and feature back pull-out design.
J Series with Noryl impellers: Abrasion-resistant for normal applications with working temperatures to 140F.
JB Series with Silicon Bronze: JB pumps equipped with shaft seals rated for temperatures to 225F.
Impeller: J Series Noryl
Impeller: JB Series Silicon

Specifications

Brand
Sta-Rite Pumps
Catalog Number
JBMD3-57S
Type
General Purpose Centrifugal Pump
Series
JB Series
Model Number
JBMD3
HP
3/4
Suction
1"
Discharge
1"
Voltage
208-230/460
Phase
3
Approx Weight (lbs.)
42
Type
Medium Head
Construction
Cast Iron
Mechanical Seal
Carbon/ceramic, Buna-N

Support Documents (pdf)
