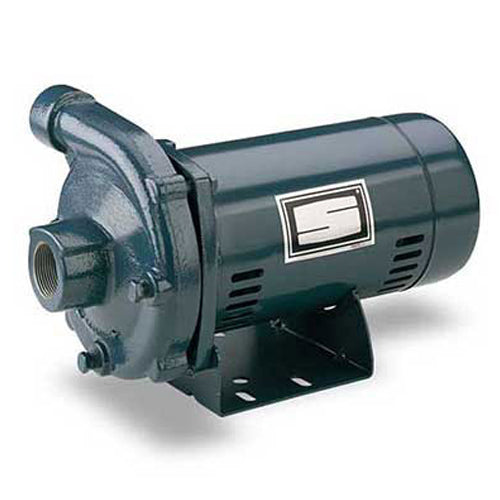

JBMD-57S Sta-Rite Pumps General Purpose Centrifugal Pump (3/4 HP, 1" Suction, 1" Discharge, 115/230 Voltage, 1 Phase, Medium Head)

JBMD-57S Sta-Rite Pumps General Purpose Centrifugal Pump (3/4 HP, 1" Suction, 1" Discharge, 115/230 Voltage, 1 Phase, Medium Head)

JBMD-57S

$796.05 USD
$1,634.00 USD $796.05 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Sta-Rite Pumps JBMD-57S, General Purpose Centrifugal Pump Type, 3/4 HP, 1" Suction, 1" Discharge, 115/230 Voltage, 1 Phase, Medium Head Type,
Applications
Water systems and sprinkling for homes, farms and industry.
Features
1/3 through 2-1/2 HP: High head and medium head models, with heavy-duty motors, easy service design and four- position discharge.
Drain Port: Provided for easy winterizing.
Easy Serviceability: All models include replaceable wear ring and feature back pull-out design.
J Series with Noryl impellers: Abrasion-resistant for normal applications with working temperatures to 140F.
JB Series with Silicon Bronze: JB pumps equipped with shaft seals rated for temperatures to 225F.
Impeller: J Series Noryl
Impeller: JB Series Silicon

Specifications

Brand
Sta-Rite Pumps
Catalog Number
JBMD-57S
Type
General Purpose Centrifugal Pump
Series
JB Series
Model Number
JBMD
HP
3/4
Suction
1"
Discharge
1"
Voltage
115/230
Phase
1
Approx Weight (lbs.)
42
Type
Medium Head
Construction
Cast Iron
Mechanical Seal
Carbon/ceramic, Buna-N
