Sta-Rite Pumps

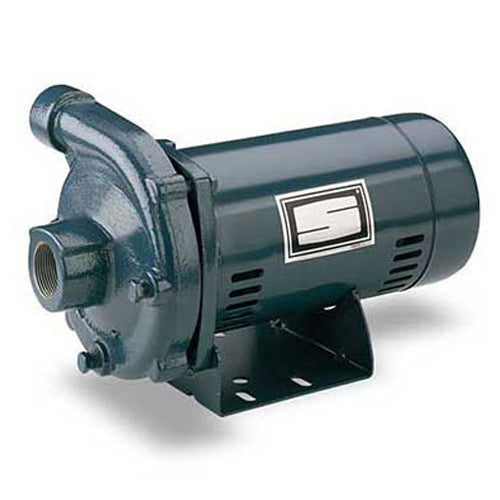

JBHD3-62S Sta-Rite Pumps General Purpose Centrifugal Pump (3/4 HP, 1-1/4" Suction, 1" Discharge, 208-230/460 Voltage, 3 Phase, High Head)

JBHD3-62S Sta-Rite Pumps General Purpose Centrifugal Pump (3/4 HP, 1-1/4" Suction, 1" Discharge, 208-230/460 Voltage, 3 Phase, High Head)

JBHD3-62S

$875.46 USD
$1,797.00 USD $875.46 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Sta-Rite Pumps JBHD3-62S, General Purpose Centrifugal Pump Type, 3/4 HP, 1-1/4" Suction, 1" Discharge, 208-230/460 Voltage, 3 Phase, High Head Type,
Applications
Water systems and sprinkling for homes, farms and industry.
Features
1/3 through 2-1/2 HP: High head and medium head models, with heavy-duty motors, easy service design and four- position discharge.
Drain Port: Provided for easy winterizing.
Easy Serviceability: All models include replaceable wear ring and feature back pull-out design.
J Series with Noryl impellers: Abrasion-resistant for normal applications with working temperatures to 140F.
JB Series with Silicon Bronze: JB pumps equipped with shaft seals rated for temperatures to 225F.
Impeller: J Series Noryl
Impeller: JB Series Silicon

Specifications

Brand
Sta-Rite Pumps
Catalog Number
JBHD3-62S
Type
General Purpose Centrifugal Pump
Series
JB Series
Model Number
JBHD3
HP
3/4
Suction
1-1/4"
Discharge
1"
Voltage
208-230/460
Phase
3
Approx Weight (lbs.)
42
Type
High Head
Construction
Cast Iron
Mechanical Seal
Carbon/ceramic, Buna-N
