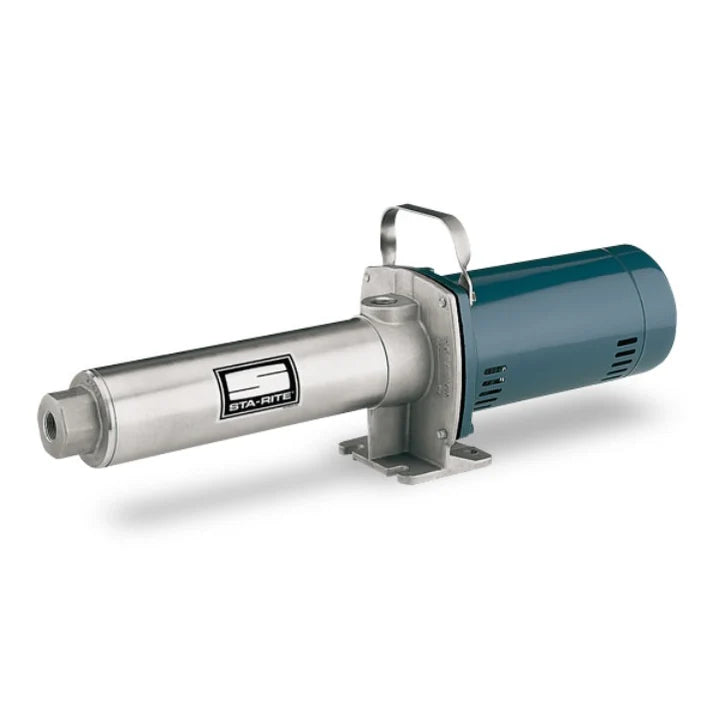

HPS30E3T-01 Sta-Rite HP Series Signature 2000 Stainless Steel High-Pressure Booster Pump (1 HP, Three Phase, 208-230/460V, TEFC Enclosure, 30 GPM)
The Sta-Rite HPS30E3T-01 HP Series Signature 2000 Stainless Steel High-Pressure Booster Pump is built with a SignaSeal floating impeller minimizing thrust loads allowing continuous trouble-free operation. A 30 GPM pump with strong 1 HP motor make it suitable for many different users. Designed and engineered by Pentair Sta-Rite - a brand you know and trust. Contact a Dade Pump customer service representative with any questions or for help selecting the correct pump for your needs.
Specifications:
Suction & Discharge Casting: Stainless Steel
Pump Shell: 304 Stainless Steel
Shaft Seal: Carbon Ceramic, Buna-N
O-Rings: Buna-N
Voltage: 208-230/460V
Motor: 1 HP, Three Phase, TEFC
Stages: 5
Impeller Material: Acetal
Ports: 1" NPT
Duty Cycle: Continuous
Frequency: 60 Hz
Manufacturer Description:
The HP/HPS Booster Pumps are the most durable booster pump available. The proven SignaSeal floating impeller design minimizes thrust loads allowing for continuous operation without damage to motor bearings, mechanical seal or pump hydraulic components.
Applications:
- Car Wash
- Filtration and reverse osmosis
- Residential, commercial or agricultural pressure washing
- Booster and spray systems
- HVAC
- General Purpose Pumping
Series Specifications:
- Max. Inlet Pressure: 80 PSI
- Max. Working Pressure: 315 PSI
- Max. Suction Lift: 15 feet
- Maximum Limits: Prolonged use with liquids above 140°F is not recommended.
- Discharge:
- HP Series: cast iron
- HPS Series: stainless steel Motor
- Adapter and Base:
- HP Series: cast iron
- HPS Series: stainless steel
- Shell: Stainless steel 304 grade
- Impeller: Acetal
- Diffuser: Polycarbonate
- Shaft: Stainless steel 304 grade
- O-Rings: Buna-N
- Mechanical Seal: Carbon/ceramic, Buna-N
