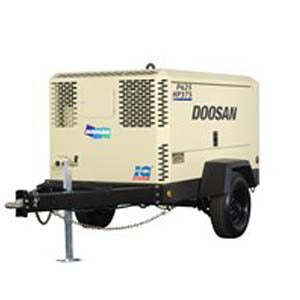

HP450 / VHP400WCU-T4F Doosan Portable Air Compressor (450/400 CFM, 80-175 / 80-225 PSIG, 1.25" Discharge, Cummins/QSB4.5 Engine)
HP450 / VHP400WCU-T4F Doosan Portable Air Compressor (450/400 CFM, 80-175 / 80-225 PSIG, 1.25" Discharge, Cummins/QSB4.5 Engine)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:HP450 / VHP400WCU-T4F
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
HP450 / VHP400WCU-T4F Doosan Portable Air Compressor (450/400 CFM, 80-175 / 80-225 PSIG, 1.25" Discharge, Cummins/QSB4.5 Engine)
The two-in-one HP450/VHP400WCU-T4F dual pressure portable air compressor delivers airflow ranging from 400 to 450 cfm and pressures ranging from 150 to 200 psi. With no increase in dimensional size from previous compressor models offered by Doosan Infracore Portable Power, users in a variety of markets will appreciate the small footprint. The compact size and a less running gear option allow the unit to be mounted on truck beds for increased flexibility. They are ideal for use in a variety of applications, including general construction, abrasive blasting and pneumatic tool applications.
HP450/VHP400WCU-T4F Air Compressor
**LOW PRESSUREHIGH PRESSURE**
The two-in-one HP450/VHP400WCU-T4F dual pressure portable air compressor delivers airflow ranging from 400 to 450 cfm and pressures ranging from 150 to 200 psi. With no increase in dimensional size from previous compressor models offered by Doosan Infracore Portable Power, users in a variety of markets will appreciate the small footprint. The compact size and a less running gear option allow the unit to be mounted on truck beds for increased flexibility. They are ideal for use in a variety of applications, including general construction, abrasive blasting and pneumatic tool applications.
HP450/VHP400WCU-T4F Air Compressor
**LOW PRESSUREHIGH PRESSURE**
Free-Air Delivery - cfm (m³/min) 450 (12.7) / 400 (11.3)
Rated operating Pressure - psig (bar) 150 (10.3) / 200 (13.8)
Pressure range - psig (bar) 80 - 175 (5.5 - 12.1) / 80 - 225 (5.5 - 15.5)
Air Discharge outlet size - in (mm) 1.25 (31.75) / 1.25 (31.75)
Air Discharge outlet Quantity - 11
Fuel Tank Capacity - gal (L) 63 (227) / 63 (227)
DEF Tank Capacity - gal (L) 5 (19) / 5 (19)
Hours of operation @ Full Load 8,58,3
ENGINE
Make/model: Cummins/QSB4.5
Emissions Tier Level Tier 4 Final (T4F)
Number of Cylinders: 44
Displacement - cu in (L) 272 (4.5) / 272 (4.5)
Rated speed - rpm2350 / 2100
Idle speed - rpm 1500 / 1500
Bhp @ rated speed (kW) 168 (125.3) / 163 (121.6)
Electrical 24
DIMENSIONS w/ running gear
Length - in (mm)152.5 (3874) / 152.5 (3874)
Width - in (mm)78.2 (1986) / 78.2 (1986)
Height - in (mm) 69.9 (1775) / 69.9 (1775)
Track Width - in (mm) 66.6 (1692) / 66.6 (1692)
Tire size - 15"
Shipping Weight - w/o fuel - 4470 lb
Working Weight - w fuel - 5030 lbs
DIMENSIONS w/o running gear
Length - in (mm) 104.2 (2647) / 104.2 (2647)
Width - in (mm) 60.7 (1542) / 60.7 (1542)
Height - in (mm)61 (1549) / 61 (1549)
Shipping Weight - w/o fuel - 4207 lbs
Working Weight - w fuel - 4767 lbs
