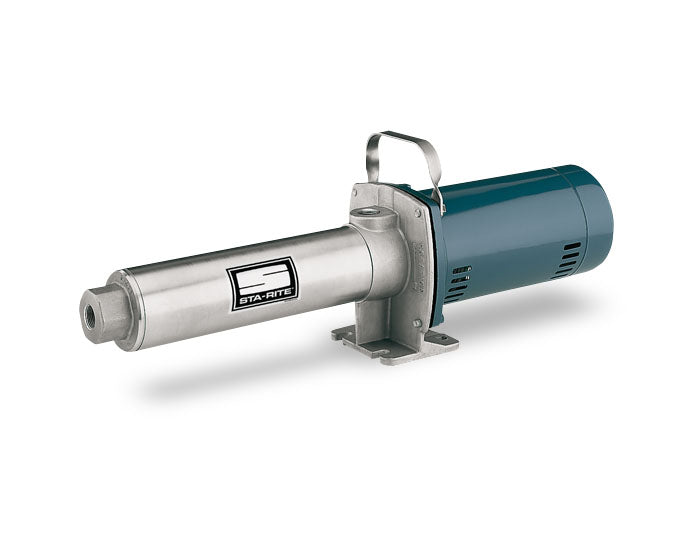

HP30E-02 STA-RITE High-Pressure Booster Pump (Cast Iron, 30 GPM, 1 HP, 115/230 V, 1 Phase)
HP30E-02 STA-RITE High-Pressure Booster Pump (Cast Iron, 30 GPM, 1 HP, 115/230 V, 1 Phase)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:HP30E-02
Precio habitual
$1,398.14 USD
Precio habitual
$2,727.00 USD
Precio de oferta
$1,398.14 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
HP30E, Cast Iron , 30 GPM, 1 HP, 115/230 V, 1 Phase, ?5 Stages, 1-1/4" Inlet Size, 1-1/4" Outlet Size,
| Applications | |
| Residential, Commercial & Agricultural Booster Systems, Pressure Washing, HVAC, Car Wash, Filtration and Reverse Osmosis | |
| Features | |
| The proven SignaSeal floating impeller design minimizes thrust loads allowing for continuous operation without damage to motor bearings, mechanical seal or pump hydraulic components | |
| Superior sand-handling and thrust management staging system | |
| Precision-molded acetal impellers for perfect balance. Ultra-smooth for highest performance and efficiency | |
| All electrical components are protected from dirt, dust, and insects by a dustproof canopy which the ventilating air cannot contaminate | |
| Precision lapped and highly polished carbon-ceramic mechanical shaft seal with stainless steel parts guarantees continuous water lubrication | |
| Precision-molded diffusers offer superior performance with high resistance to corrosion and abrasion | |
Specifications | |
Brand |
STA-RITE |
Model Number |
HP30E |
Type |
High Pressure Booster Pump |
STA-RITE Pump Series |
HP Series |
Pump Construction |
Cast Iron |
GPM |
30 |
HP |
1 |
Voltage |
115/230 |
Phase |
1 |
Stages |
?5 |
Inlet Size |
1-1/4" |
Outlet Size |
1-1/4" |
Max. Inlet Pressure |
80 PSI |
Max. Working Pressure |
315 PSI |
Max. Suction Lift |
15 feet |
Max. Temp. |
140 F |
Motor Enclosure |
ODP (TEFC on request) |
Shaft |
Stainless Steel 304 grade |
Impeller |
Acetal |
Mechanical Seal |
Carbon/ceramic, Buna-N |
Diffuser |
Polycarbonate |
Pressure Switch |
Not Included |
Warranty |
1 Year Limited Warranty |
Weight lbs. |
47 |
Notes & Pump Curve |
See Support Documents |
Pump Manual |
See Support Documents |
Support Documents (pdf) | ||||
| Notes & Pump Curve | ||||
| Installation & Parts Manual | ||||
