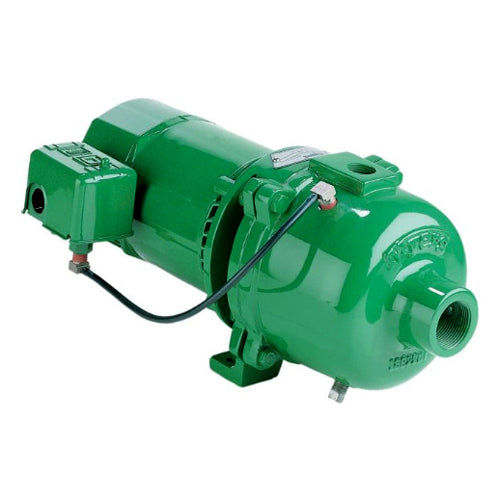

HJ50S Myers Pump (1/2 HP, 115/230 V, 1" NPT Discharge, 1-1/4" NPT Suction)

Myers Pumps HJ50S, HJ , 20927D000 Model, 115/230 , 1" NPT Discharge, 1-1/4" NPT Suction, Cast Iron Material, 150 ft Max Head

Applications
Supply water systems and sprinkling systems for homes, farms, businesses and industry
Features
Quality Construction Durable machined heavy-duty construction pump body provides long product life
Impellers Precision molded impellers and diffuser provide smooth, balanced performance and efficiency
Pressure Switch High quality proven pressure switch with adjustable on/off pressure settings. 20 PSI differential
Motor Heavy-duty motor with double ball bearing design and voltage selection device
Shaft Seal Mechanical shaft seal with ceramic face and stainless steel construction for long seal life
Heavy duty cast iron case and motor bracket
Dual compartment, 115/230 volt double-ball bearing motor with voltage selector switch
Dual adjustment pressure switch. Includes priming tee on shallow well models and pressure regulator on deep well models
Priming screen
Stainless steel impeller wear ring

Specifications
Brand	Myers Pumps
Catalog Number	HJ50S
Type	Shallow Well Jet Pump
Series	HJ
HP	1/2
Model	20927D000
Voltage	115/230
Discharge	1" NPT
Suction	1-1/4" NPT
Impeller Material	Plastic
Hz	60
Material	Cast Iron
Shaft Seal Material	Ceramic/ Stainless Steel
Max GPM	16
Max Head	150 ft
Phase	1
Notes	See support documents
Pump Curves	See Support Documents Below
Alternative Pump Model	Sta-Rite Pump HNC - Click Here

Support Documents (pdf)
