WEG

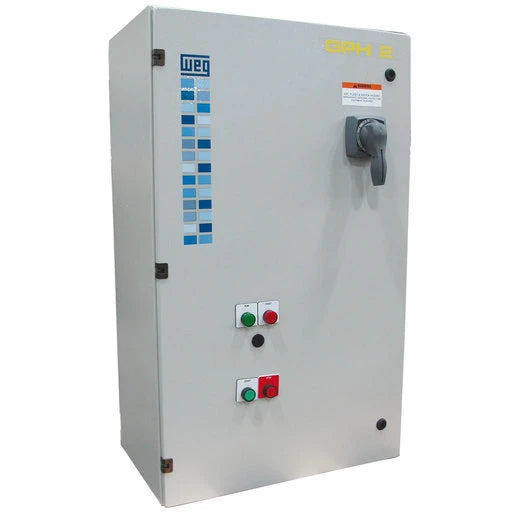

GPH2200PC4000 WEG Soft Starter (NEMA 4/12, 200 HP, 460V, AC3 Bypass, Type 4)
GPH2200PC4000 WEG Soft Starter (NEMA 4/12, 200 HP, 460V, AC3 Bypass, Type 4)
SKU:GPH2200PC4000
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
GPH2200PC4000 WEG Soft Starter (NEMA 4/12, 200 HP, 460V, AC3 Bypass, Type 4)
| Series | GPH2 |
|---|---|
| Panel type | SOFT-STARTER |
| Horsepower (HP) | 200 HP |
| Enclosure type | Wall mount |
| Thermal Managment | None |
| General enclosure options | None |
| Main voltage | 460 V |
| Control Voltage | 120 V |
| Frequency | 60 Hz |
| SCCR rating | 5 kAIC |
| Disconnect switch type | Circuit Breaker rotary handle disconnect |
| Bypass type | AC3 |
| Control power transformer | 200 VA - Open |
| Reactor/Filter | None |
| Communication | None |
| Control options | Start Pushbutton, Stop Pushbutton, Run Light and Fault Light |
| Enclosure rating | Type 4 |
| Nominal height | 1200.0 mm / 47.2 in |
| Nominal width | 800.0 mm / 31.5 in |
| Nominal depth | 400.0 mm / 15.7 in |
| Certification | UL/cUL |
