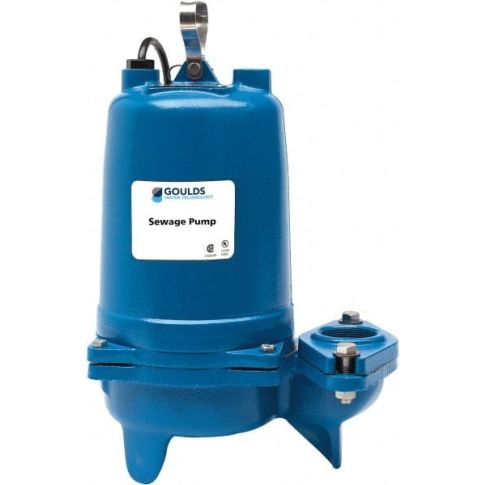

Goulds Pumps WS0537BHF Submersible Sewage Pump (1/2 HP, 575 Volts, 3-Phase)
Goulds Pumps WS0537BHF Submersible Sewage Pump (1/2 HP, 575 Volts, 3-Phase)
SKU:WS0537BHF
Precio habitual
$1,340.93 USD
Precio habitual
$2,083.00 USD
Precio de oferta
$1,340.93 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
WS0537BHF Goulds Submersible Sewage Pump (1/2 HP, 575 VOLTS, 2" MAX Solids, 29' MAX HEAD, 122 MAX GPM, THREE PHASE)
| Applications | |
| This Goulds Pump is specifically designed for the following uses: Homes, Sewage Systems, Dewatering/Effluent, Water Transfer, Light Industrial | |
| Features | |
| Impeller: Cast iron, semi-open, dynamically balanced, non-clog with pump out vanes for mechanical seal protection. Optional Silicon bronze impeller available. | |
| Casing: Cast iron volute type for maximum efficiency. Designed for easy installation on A10-20 guide rail or base elbow rail systems. | |
| Mechanical Seal: SILICON CARBIDE VS. SILICON CARBIDE sealing faces for superior abrasive resistance, stainless steel metal parts, BUNA-N elastomers. | |
| Shaft: Corrosion-resistant stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation. | |
| Fasteners: 300 series stainless steel. | |
| Capable of running dry without damage to components. | |
| Designed for continuous operation when fully submerged. | |
Tech Specs | |
Brand |
Goulds Pumps |
Model Number |
WS0537BHF |
HP |
1/2 |
PHASE |
THREE |
VOLTS |
575 |
RPM |
3500 |
IMPELLER DIA. (IN.) |
3.19 |
MAX. AMPS. |
1.5 |
LOCKED ROTOR AMPS |
7.5 |
KVA CODE |
R |
LOAD MOTOR EFF. % |
62 |
RESISTANCE START |
- |
RESISTANCE LINE-LINE |
35.3 |
WEIGHT (LBS.) |
65 |
DISCHARGE SIZE |
2" NPT COMPANION FLANGE |
SOLIDS HANDLING CAPABILITIES |
2" MAX |
MAX HEAD |
29' |
MAX GPM |
122 |
NOTES |
SEE PRODUCT LITERATURE |
Support Documents (pdf) | ||||
| Goulds Literature | ||||
