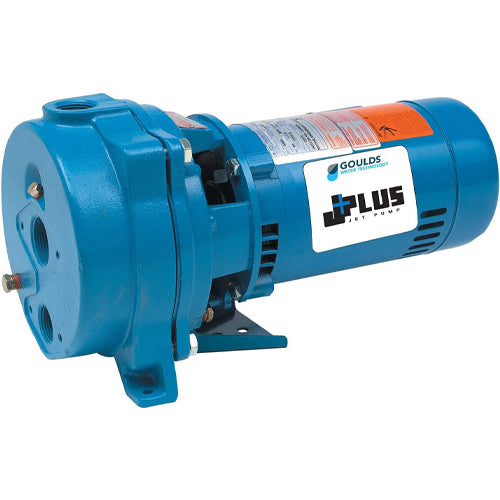

Goulds Pumps J7 Convertible Jet Pump (3/4 HP, 115/230 Volts, 1 Phase)

Goulds J7, Convertible Jet Pump, J+ Series, 3/4 HP, 115/230 Volts, 1 Phase, 1-1/4" NPT Suction, 1" NPT Discharge, Cast Iron Body

Applications
Homes; Cottages; Booster Service
Features
One Year Factory Warranty
Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter.
Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping
Impeller: F.D.A. compliant, glass filled Noryl is corrosion and abrasion resistant.
Diffuser (Guidevane): Diffuser has stainless wear ring for extended performance in abrasive conditions.
Powered for Continuous Operation: Can be operated continuously without damage.
Protected Mechanical Seal: Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry.
Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system.

Tech Specs
Brand	Goulds
Model Number	J7
Series	J+
HP	3/4
RPM	3500
Voltage	115/230
Phase	Single
Hertz	60
Rotation	Clockwise when viewed from motor
Max Temperature	140
Shaft	Stainless Steel
Notes	Built-in overload with automatic reset
Suction Pipe Connection (in)	1-1/4" NPT
Discharge Pipe Connection (in)	1" NPT
Impeller Material	Glass filled noryl
Thermal Protection	Yes
Maximum Temperature	140°F
Type	Convertible Jet Pump for Shallow Well or Deep Well
Parts List	Click Here
