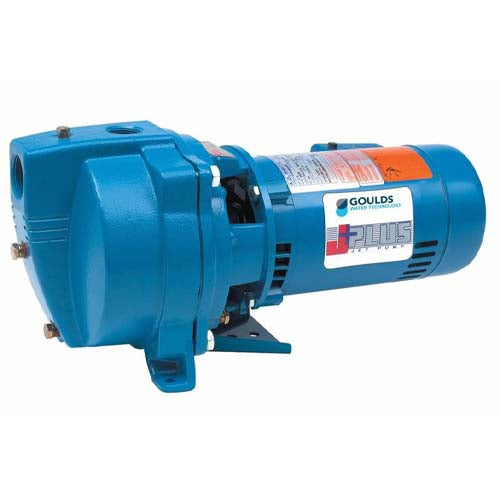

Goulds J5SH High Pressure Jet Pump (1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)
Goulds J5SH High Pressure Jet Pump (1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)
[COUNT] shoppers are looking at this right now
No reviews
SKU:J5SH
Precio habitual
$821.40 USD
Precio habitual
$1,369.00 USD
Precio de oferta
$821.40 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
View Price in Cart
No se pudo cargar la disponibilidad de retiro
Goulds J5SH High Pressure Jet Pump (J5SH, 1/2 HP, 11 Max GPM)
| Applications | |
| Homes; Cottages; Booster Service | |
| Features | |
| Basic Pump Unit: Includes pump with integral shallow well jet (nozzle and venturi), motor, pressure switch and tubing. | |
| One Year Factory Warranty | |
| Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter. | |
| Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping | |
| Impeller: F.D.A. compliant, glass filled No¬ryl® is corrosion and abrasion resistant. | |
| Diffuser (Guidevane): Diffuser has stainless wear ring for extended performance in abrasive conditions. | |
| Powered for Continuous Operation: Can be oper¬ated continuously without damage. | |
| Protected Mechanical Seal: Special dia¬phragm design retains water in the casing at all times to ensure the mechanical seal can never run dry. | |
| Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system. | |
|
Tech Specs |
|
|
Brand
|
Goulds
|
|
Type
|
Shallow Well Jet Pump
|
|
Model Number
|
J5SH
|
|
HP
|
1/2
|
|
Voltage
|
115/230
|
|
Phase
|
Single
|
|
RPM
|
3500
|
|
Hertz
|
60
|
|
Rotation
|
Clockwise when viewed from motor
|
|
Max Temperature
|
140
|
|
Shaft
|
Stainless Steel
|
|
Notes
|
Built-in overload with automatic start
|
|
Impeller Material
|
Glass filled noryl
|
|
Suction Pipe Connection (in)
|
1-1/4" NPT
|
|
Discharge Pipe Connection (in)
|
1" NPT
|
|
Maximum Shut Off Pressure
|
83 psi
|
|
Maximum Temperature
|
140°F
|
|
Pump Length
|
17-1/4"
|
|
Flow at 5 ft (30 psi)
|
11.3 gpm
|
|
Flow at 10 ft (30 psi)
|
10 gpm
|
|
Flow at 15 ft (30 psi)
|
8.6 gpm
|
|
Flow at 20 ft (30 psi)
|
7 gpm
|
|
Flow at 25 ft (30 psi)
|
5.2 gpm
|
|
Pressure Switch & Tubing
|
Part # AS4 - Preset (30-50 PSI)
|
|
Venturi
|
Part # AD3328
|
|
Nozzle
|
Part # AN019
|
