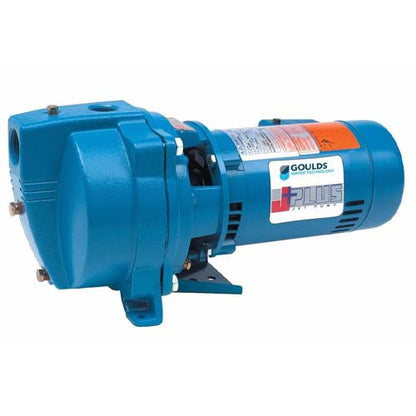

• Goulds Pumps J15S Shallow Well Jet Pump (1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)
1 2

Goulds Pumps

Goulds Pumps J15S Shallow Well Jet Pump (1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)

Goulds Pumps J15S Shallow Well Jet Pump (1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)

👁️ [COUNT] People are currently viewing this product.

J15S

$1,429.20 USD
$2,382.00 USD $1,429.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

J15S Goulds Jet Pump (1 1/2 HP, 26 Max GPM, 115/230, Single Phase, 1 1/4" NPT Suction, 1" NPT Discharge)

Applications
Homes; Cottages; Booster Service
Features
One Year Factory Warranty
Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter.
Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping
Impeller: F.D.A. compliant, glass filled Noryl® is corrosion and abrasion resistant.
Diffuser (Guidevane): Diffuser has stainless wear ring for extended performance in abrasive conditions.
Powered for Continuous Operation: Can be oper¬ated continuously without damage.
Protected Mechanical Seal: Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry.
Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system.

Tech Specs

Brand
Goulds
Type
Shallow Well Jet Pump
Model Number
J15S
HP
1-1/2
RPM
3500
Voltage
115/230
Phase
Single
Speed
1500 RPM
Hertz
60
Rotation
Clockwise when viewed from motor
Max Temperature
140
Shaft
Stainless Steel
Notes
Built-in overload with automatic reset
Suction Pipe Connection (in)
1-1/4" NPT
Discharge Pipe Connection (in)
1" NPT

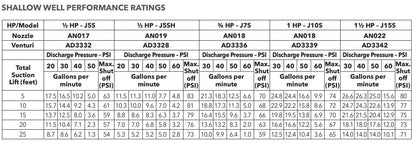

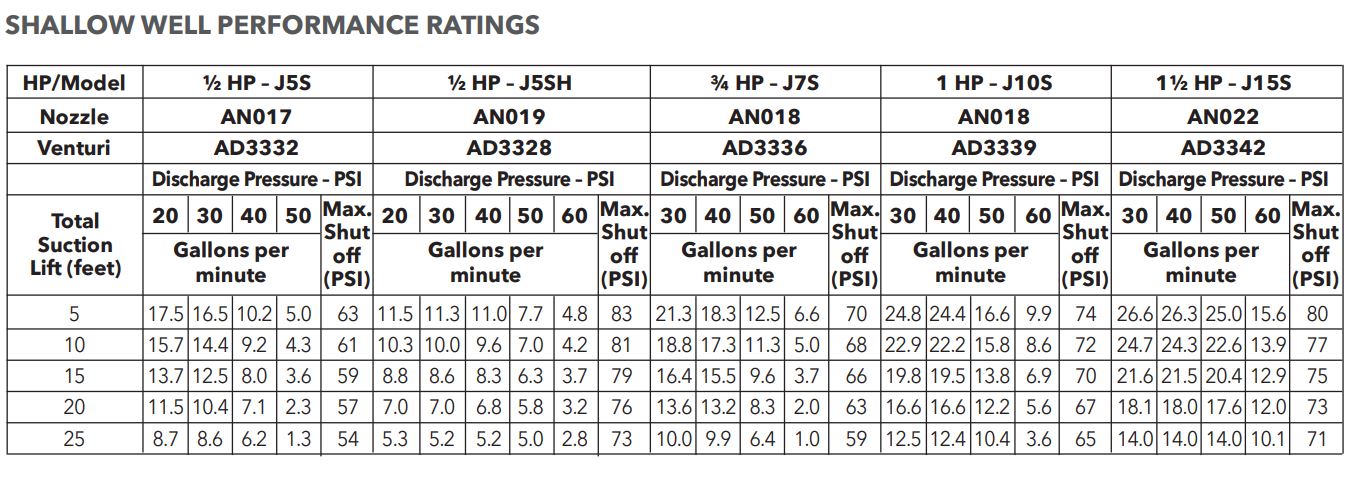

Flow at 5 ft (30 psi)
26.6 gpm
Flow at 10 ft (30 psi)
24.7 gpm
Flow at 15 ft (30 psi)
21.6 gpm
Flow at 20 ft (30 psi)
18.1 gpm
Flow at 25 ft (30 psi)
14 gpm
Maximum Shut Off Pressure
80 psi
Pump Casing
Cast iron
Impeller Material
Glass filled noryl
Thermal Protection
YES
Maximum Temperature
140°F
Pump Length
19-1/4"
Pressure Switch
AS4 Preset (30-50 PSI)
Venturi
AD3342
Nozzle
AN022
Alternative Option (If not in stock)
 Sta-Rite Pump SNF Click Here
Parts List















































Support Documents (pdf)
Product Literature
