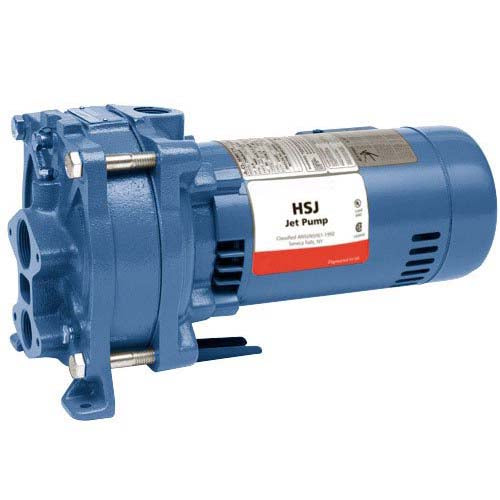

Goulds HSJ15N Multi Stage Convertible Jet Pump (1-1/2 HP, 115/230 Volts, 1 Phase, Cast Iron)
Goulds HSJ15N Multi Stage Convertible Jet Pump (1-1/2 HP, 115/230 Volts, 1 Phase, Cast Iron)
[COUNT] shoppers are looking at this right now
No reviews
SKU:HSJ15N
Precio habitual
$2,209.80 USD
Precio habitual
$3,683.00 USD
Precio de oferta
$2,209.80 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
View Price in Cart
No se pudo cargar la disponibilidad de retiro
HSJ15N Goulds Horizontal Multi Stage Jet Pump (1.5 HP, 230 Volts, Single Phase, 22.8 GPM, )
| Applications | |
| Homes, Farms, Cottages, Booster Service | |
| Features | |
| High Capacity and Pressure | |
| Stainless Steel Pump Shaft | |
| Corrosion Resistant | |
| Easy to Service | |
| Powered for Continuous Operation | |
| Convertible - May be used on Shallow and Deep Well Applications | |
Tech Specs | |
Brand |
Goulds Pumps |
Model Number |
HSJ15N |
Series |
HSJ |
Application |
Shallow or deep well |
Brand |
Goulds Pumps |
HP |
1-1/2 |
Volts |
115/230 |
Phase |
Single |
Stages |
3 |
Suction Connection |
1-1/4" |
Discharge Connection |
1" |
GPM |
22.8 |
Type |
Multi-Stage Convertible Jet Pumps |
Hz |
60 |
RPM |
3500 |
Length |
17" |
Width |
8" |
Height |
9" |
Flow at 5 ft (30 psi) |
22.8 gpm |
Flow at 10 ft (30 psi) |
20.7 gpm |
Flow at 15 ft (30 psi) |
18 gpm |
Flow at 20 ft (30 psi) |
15 gpm |
Flow at 25 ft (30 psi) |
11.2 gpm |
Maximum Shut Off Pressure |
104 psi |
Impeller Material |
Glass filled thermoplastic |
Thermal Protection |
Yes |
Maximum Temperature |
140°F |
Shallow Well Adapter |
Not Included |
Notes |
See Goulds Literature |
Support Documents (pdf) | ||||
| Goulds Literature | ||||
