Goulds Parts

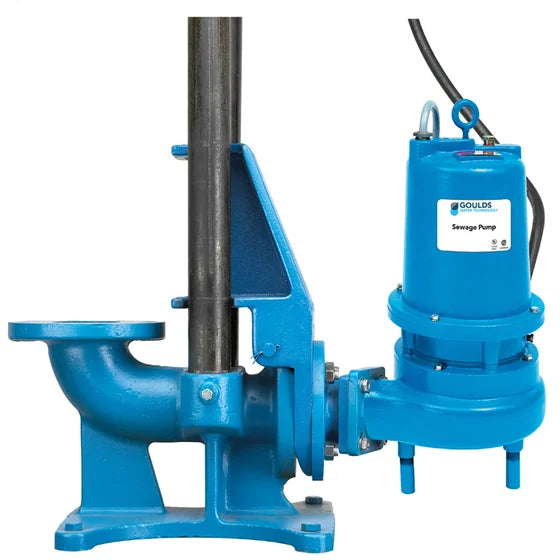

A10-30 Goulds 3 X 4 inch Rail System for Effluent and Sewage Pumps (3" Pump Discharge, 4" ANSI Flange Discharge)
A10-30 Goulds 3 X 4 inch Rail System for Effluent and Sewage Pumps (3" Pump Discharge, 4" ANSI Flange Discharge)
[COUNT] shoppers are looking at this right now
SKU:A10-30
Precio habitual
$2,912.30 USD
Precio habitual
$3,564.00 USD
Precio de oferta
$2,912.30 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
View Price in Cart
No se pudo cargar la disponibilidad de retiro
Goulds A10-30, 3 X 4 inch Rail System Type, 3 inch Pump Discharge),
*Pump not included.
| Applications | |
| Guide Rail Systems for Effluent and Sewage Pumps | |
| Features | |
| A10-30, 3 X 4 inch RAIL SYSTEM: Connects to any pump with a 3 inch, 150# ANSI flanged discharge. Outlet is a 4 inch flanged discharge. | |
| A10-40, 4X4 inch RAIL SYSTEM: Connects to any pump with a 4 inch, 150# ANSI flanged discharge. Outlet is a 4 inch flanged discharge. | |
| A10-60, 4 X 6 inch RAIL SYSTEM: Connects to any pump with a 4 inch, 150# ANSI flanged discharge. Outlet is a 6 inch flanged discharge. | |
| Cast iron construction for standard applications. | |
| Optional bronze pump adapter for applications requiring a non-sparking disconnect. Standard kit contains a Base, a Pump Adapter with all required bolts and fittings and the Upper Guide Rail Positioning Bracket. | |
| Optional intermediate guide rail brackets are available in either steel or brass for non-sparking applications. Guide rails are not supplied they may be sourced locally - 2 inch stainless steel guide rails recommended. | |
| Spare pump adapter kits are available for those who want a back-up pump/adapter ready for an emergency quick change. | |
| * See Support Documents below for additional information | |
|
Specifications |
|
|
Brand
|
Goulds
|
|
Catalog Number
|
A10-30
|
|
Type
|
3 X 4 inch Rail System
|
|
inch Pump Discharge)
|
3
|
|
Flanged Discharge (in)
|
4
|
|
Pump
|
Not Included
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
