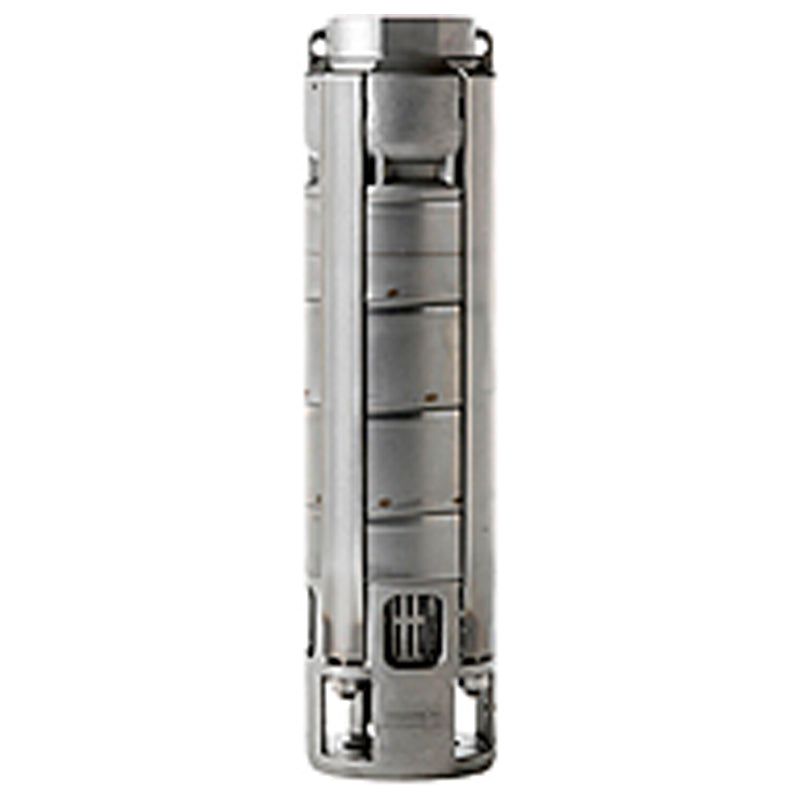

Goulds Pumps 50L10 Submersible Pump End (10 HP, 15 Stages, 3" NPT Discharge)

Goulds 50L10, 6" Stainless Steel Submersible Pumps Type, 50L Series, 10 HP, 15 Stages, 3" NPT Discharge,

Applications
Below ground well pump for residential and small municipal water supply as well as light irrigation applications.
Features
Powered for Continuous Operation: All ratings are within the working limits of the motor. Pump can be operated continuously.
New Design Features: Cast 304 SS discharge head and motor adapter.
Field Serviceable: Easy to install and service. All parts easily dismantled if field service is ever necessary.
Diverse Application: Designed for commercial, municipal and agricultural water needs.
Stainless Steel Construction: Durable in most waters.
Bearings: Replaceable, silicon carbide bearings allow excellent abrasives handling and wear resistance.
Built-in Check Valve: Positive sealing, stainless steel check valve assembly incorporated into discharge head.
Impellers: New stainless steel impeller design provides improved efficiency.
Maximum Temperature: 140 Degrees F.
Four-Fluted Shaft Design: Four sided stainless steel shaft eliminates impeller keys and provides positive drive.
Coupling: Removable heavy duty stainless steel, splined coupling for maximum load-carrying capability.

Specifications
Brand	Goulds
Catalog Number	50L10
Type	6" Stainless Steel Submersible Pumps
Series	50L
HP	10
Stages	15
Required Motor Dia.	6
Length (in)	40.2
Diameter (in)	5.67
Discharge	3" NPT
Recommended GPM Operating Range	17 - 70
GPM at Best Efficiency	50
Minimum Well Size	6" / 8"
Required Motor Dia.	6"
Rotation at Discharge End	CCW
Motor	Not Included, See Support Documents
Notes	See Support Documents

Support Documents (pdf)
