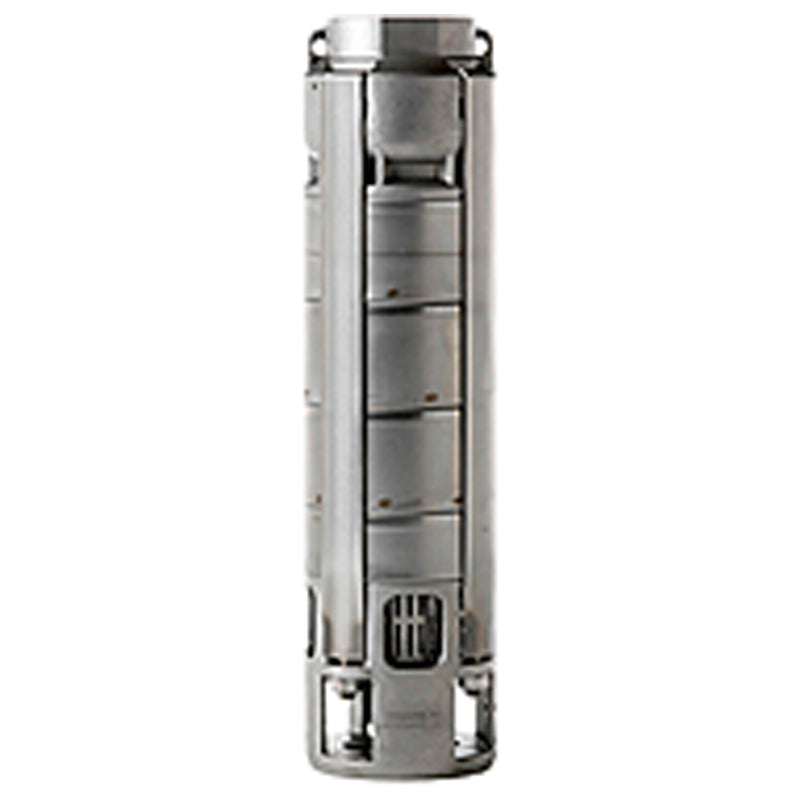

Goulds Pumps 50L05R Submersible Pump End (5 HP, 7 Stages, 3" NPT Discharge)

Goulds 50L05R, 6" Stainless Steel Submersible Pumps Type, 50L Series, 5 HP, 7 Stages, 3" NPT Discharge,

Applications
Below ground well pump for residential and small municipal water supply as well as light irrigation applications.
Features
Powered for Continuous Operation: All ratings are within the working limits of the motor. Pump can be operated continuously.
New Design Features: Cast 304 SS discharge head and motor adapter.
Field Serviceable: Easy to install and service. All parts easily dismantled if field service is ever necessary.
Diverse Application: Designed for commercial, municipal and agricultural water needs.
Stainless Steel Construction: Durable in most waters.
Bearings: Replaceable, silicon carbide bearings allow excellent abrasives handling and wear resistance.
Built-in Check Valve: Positive sealing, stainless steel check valve assembly incorporated into discharge head.
Impellers: New stainless steel impeller design provides improved efficiency.
Maximum Temperature: 140 Degrees F.
Four-Fluted Shaft Design: Four sided stainless steel shaft eliminates impeller keys and provides positive drive.
Coupling: Removable heavy duty stainless steel, splined coupling for maximum load-carrying capability.

Specifications
Brand	Goulds
Catalog Number	50L05R
Type	6" Stainless Steel Submersible Pumps
Series	50L
HP	5
Stages	7
Required Motor Dia.	4/6
Length (in)	25.8
Diameter (in)	5.67
Discharge	3" NPT
Recommended GPM Operating Range	17 - 70
GPM at Best Efficiency	50
Minimum Well Size	6" / 8"
Required Motor Dia.	4/6"
Rotation at Discharge End	CCW
Motor	Not Included, See Support Documents
Notes	See Support Documents

Support Documents (pdf)
