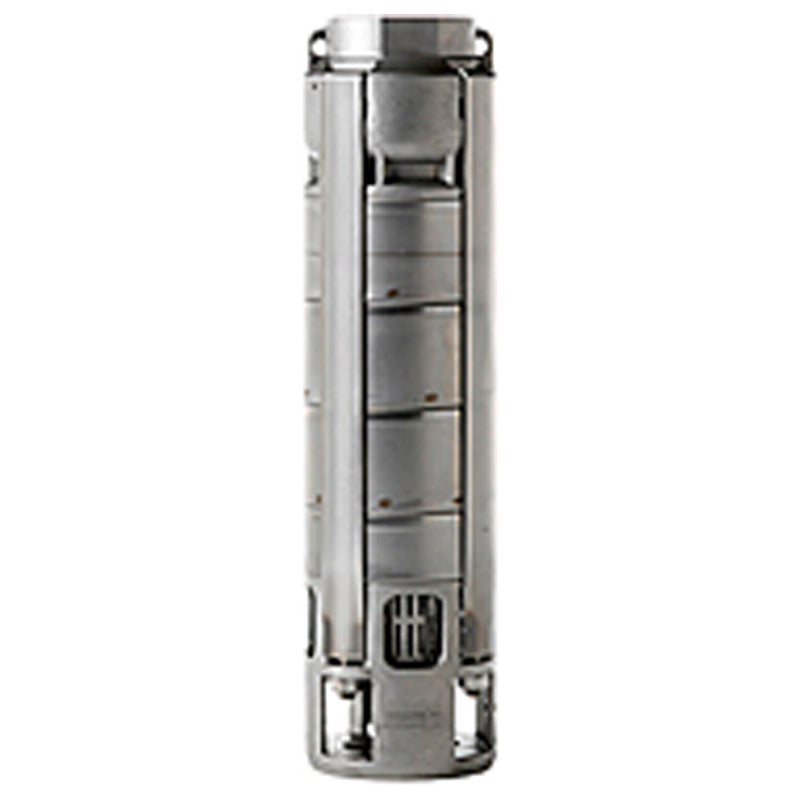

Goulds Pumps 50L05 Submersible Pump End (5 HP, 8 Stages, 3" NPT Discharge)
Goulds Pumps 50L05 Submersible Pump End (5 HP, 8 Stages, 3" NPT Discharge)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:50L05
Precio habitual
$3,079.80 USD
Precio habitual
$5,133.00 USD
Precio de oferta
$3,079.80 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Goulds 50L05, 6" Stainless Steel Submersible Pumps Type, 50L Series, 5 HP, 8 Stages, 3" NPT Discharge,
| Applications | |
| Below ground well pump for residential and small municipal water supply as well as light irrigation applications. | |
| Features | |
| Powered for Continuous Operation: All ratings are within the working limits of the motor. Pump can be operated continuously. | |
| New Design Features: Cast 304 SS discharge head and motor adapter. | |
| Field Serviceable: Easy to install and service. All parts easily dismantled if field service is ever necessary. | |
| Diverse Application: Designed for commercial, municipal and agricultural water needs. | |
| Stainless Steel Construction: Durable in most waters. | |
| Bearings: Replaceable, silicon carbide bearings allow excellent abrasives handling and wear resistance. | |
| Built-in Check Valve: Positive sealing, stainless steel check valve assembly incorporated into discharge head. | |
| Impellers: New stainless steel impeller design provides improved efficiency. | |
| Maximum Temperature: 140 Degrees F. | |
| Four-Fluted Shaft Design: Four sided stainless steel shaft eliminates impeller keys and provides positive drive. | |
| Coupling: Removable heavy duty stainless steel, splined coupling for maximum load-carrying capability. | |
Specifications | |
Brand |
Goulds |
Catalog Number |
50L05 |
Type |
6" Stainless Steel Submersible Pumps |
Series |
50L |
HP |
5 |
Stages |
8 |
Required Motor Dia. |
4/6 |
Length (in) |
27.8 |
Diameter (in) |
5.67 |
Discharge |
3" NPT |
Recommended GPM Operating Range |
17 - 70 |
GPM at Best Efficiency |
50 |
Minimum Well Size |
6" / 8" |
Required Motor Dia. |
4/6" |
Rotation at Discharge End |
CCW |
Motor |
Not Included, See Support Documents |
Notes |
See Support Documents |
Support Documents (pdf) |
