Goulds Pumps

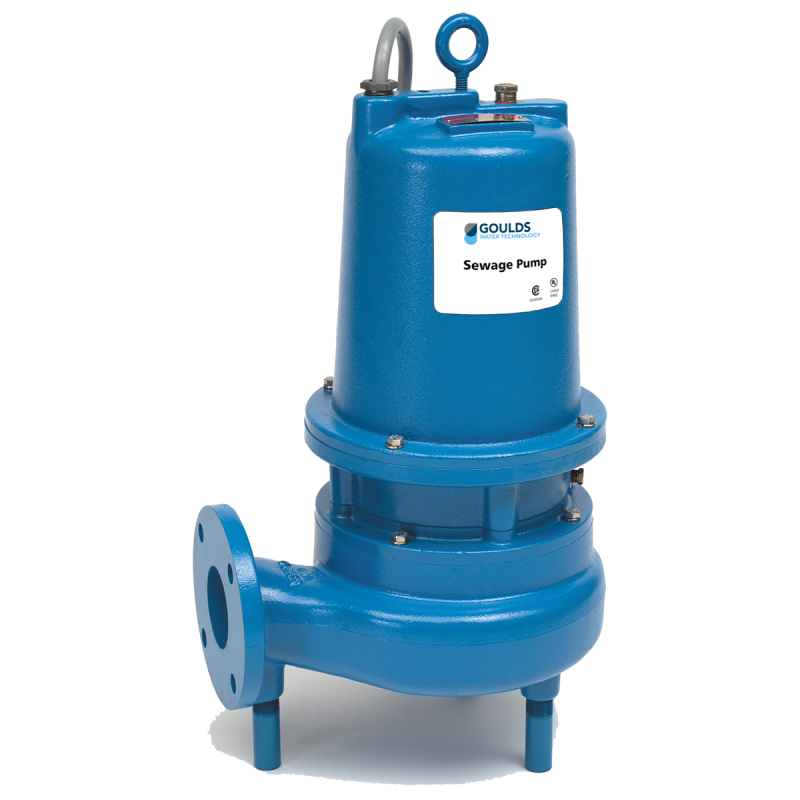

Goulds Pumps 3SD52H3BA Submersible Sewage Pump (3 HP, 230 Volts, 3 PHASE)
Goulds Pumps 3SD52H3BA Submersible Sewage Pump (3 HP, 230 Volts, 3 PHASE)
SKU:3SD52H3BA
Precio habitual
$5,496.06 USD
Precio habitual
$8,751.00 USD
Precio de oferta
$5,496.06 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
3SD52H3BA Goulds Submersible Sewage Pump (3 HP, 230 VOLTS, 3" FLANGED , 2.5" SOLIDS SIZE, 3 PHASE)
| Applications | |
| This Goulds Pump in used in a variety of residential, commercial and industrial applications such as: Sewage systems, Flood and pollution control, Dewatering/Effluent, Farms, Hospitals, Trailer courts | |
| Features | |
| Impeller: Cast iron, two vane semi-open, non-clog with pump-out vanes for mechanical seal protection. Balanced for smooth operation. Silicon bronze impeller available as an option. | |
| Casing: Heavy duty cast iron, volute type for maximum efficiency. 3" flange conforms to 125 # ANSI standard. Connects to A10-30 guide rail system. | |
| Dual Mechanical Seals: Silicon carbide vs. silicon carbide outer seal and ceramic vs. carbon inner seal, stainless steel metal parts, BUNA-N elastomers. Upper and lower shaft seals are positioned independently and are separated by an oil-filled chamber. | |
| Seal Sensor Probe: Located in oil-filled chamber. If pumpage should begin to leak past lower seal it indicates to pump control panel a fault has occurred. Requires optional Seal Fail Circuit in the control panel. | |
| Shaft: 300 series stainless steel keyed design. | |
| Fasteners: 300 series stainless steel. | |
| Capable of running dry without damage to components. | |
Tech Specs | |
Brand |
Goulds Pumps |
Model Number |
3SD52H3BA |
HP |
3 |
PHASE |
3 |
VOLTS |
230 |
RPM |
1750 |
IMPELLER DIA. (IN.) |
7.25 |
IMPELLER CODE |
B |
MAX. AMPS. |
12 |
LOCKED ROTOR AMPS |
49.5 |
KVA CODE |
H |
POWER CABLE |
14/4 |
LOAD MOTOR EFF. % |
83 |
RESISTANCE START |
NA |
RESISTANCE LINE-LINE |
1.9 |
WEIGHT (LBS.) |
200 |
DISCHARGE SIZE |
3" FLANGED |
SOLIDS HANDLING CAPABILITIES |
2.5" |
MAX HEAD & GPM |
SEE PUMP CURVE |
Support Documents (pdf) | ||||
| Goulds Literature | ||||
| Pump Curve | ||||
