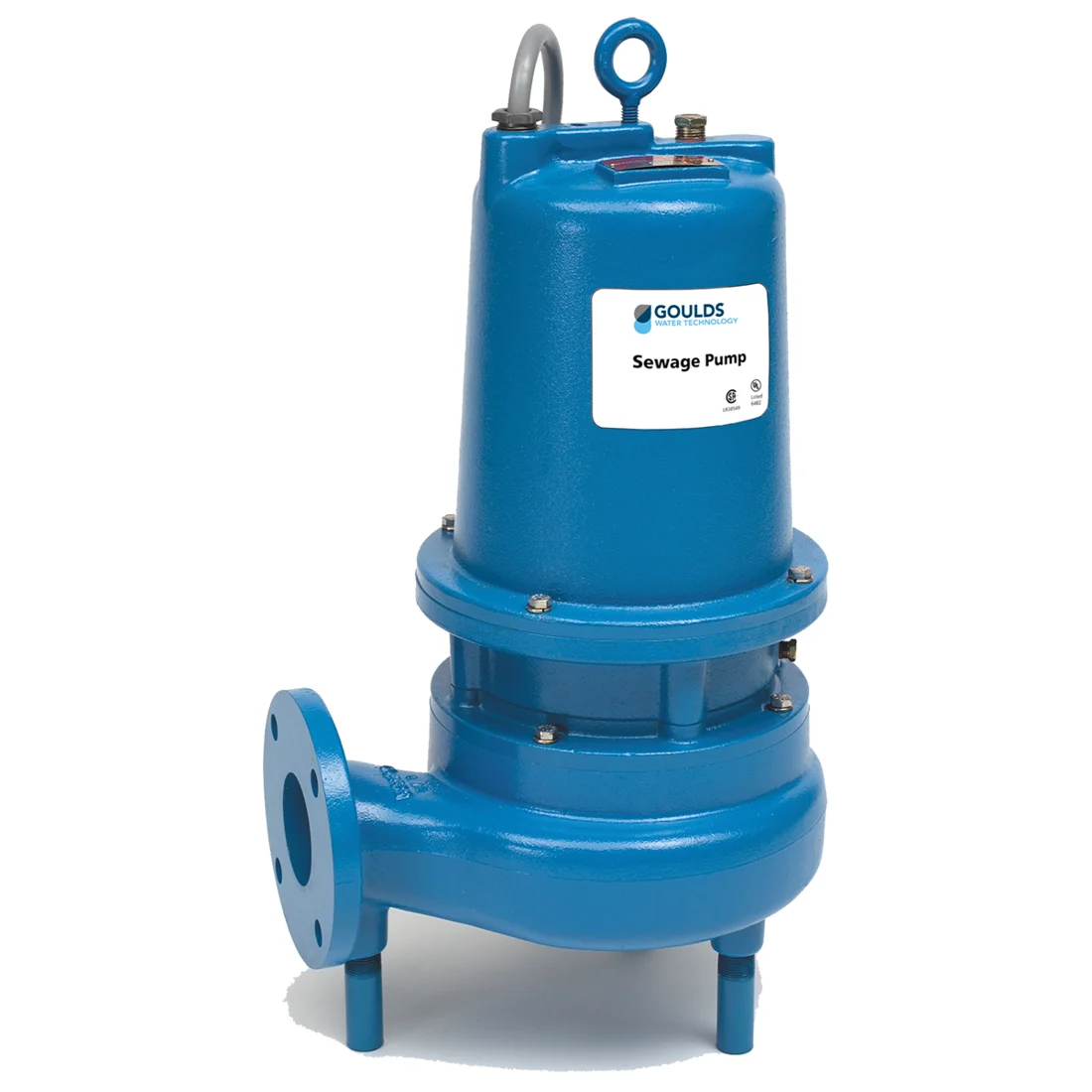

Goulds Pumps 3SD52H1BA Submersible Sewage Pump (3 HP, 230 Volts, 1 PHASE)
Goulds Pumps 3SD52H1BA Submersible Sewage Pump (3 HP, 230 Volts, 1 PHASE)
SKU:3SD52H1BA
Precio habitual
$6,020.99 USD
Precio habitual
$9,353.00 USD
Precio de oferta
$6,020.99 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
3SD52H1BA Goulds Submersible Sewage Pump (3 HP, 230 VOLTS, 3" FLANGED , 2.5" SOLIDS SIZE, 1 PHASE)
| Applications | |
| This Goulds Pump in used in a variety of residential, commercial and industrial applications such as: Sewage systems, Flood and pollution control, Dewatering/Effluent, Farms, Hospitals, Trailer courts | |
| Features | |
| Impeller: Cast iron, two vane semi-open, non-clog with pump-out vanes for mechanical seal protection. Balanced for smooth operation. Silicon bronze impeller available as an option. | |
| Casing: Heavy duty cast iron, volute type for maximum efficiency. 3" flange conforms to 125 # ANSI standard. Connects to A10-30 guide rail system. | |
| Dual Mechanical Seals: Silicon carbide vs. silicon carbide outer seal and ceramic vs. carbon inner seal, stainless steel metal parts, BUNA-N elastomers. Upper and lower shaft seals are positioned independently and are separated by an oil-filled chamber. | |
| Seal Sensor Probe: Located in oil-filled chamber. If pumpage should begin to leak past lower seal it indicates to pump control panel a fault has occurred. Requires optional Seal Fail Circuit in the control panel. | |
| Shaft: 300 series stainless steel keyed design. | |
| Fasteners: 300 series stainless steel. | |
| Capable of running dry without damage to components. | |
Tech Specs | |
Brand |
Goulds Pumps |
Model Number |
3SD52H1BA |
HP |
3 |
PHASE |
1 |
VOLTS |
230 |
RPM |
1750 |
IMPELLER DIA. (IN.) |
7.25 |
IMPELLER CODE |
B |
MAX. AMPS. |
21.5 |
LOCKED ROTOR AMPS |
46.4 |
KVA CODE |
C |
POWER CABLE |
10/3 |
LOAD MOTOR EFF. % |
79 |
RESISTANCE START |
1 |
RESISTANCE LINE-LINE |
1 |
WEIGHT (LBS.) |
205 |
DISCHARGE SIZE |
3" FLANGED |
SOLIDS HANDLING CAPABILITIES |
2.5" |
MAX HEAD & GPM |
SEE PUMP CURVE |
Support Documents (pdf) | ||||
| Goulds Literature | ||||
| Pump Curve | ||||
