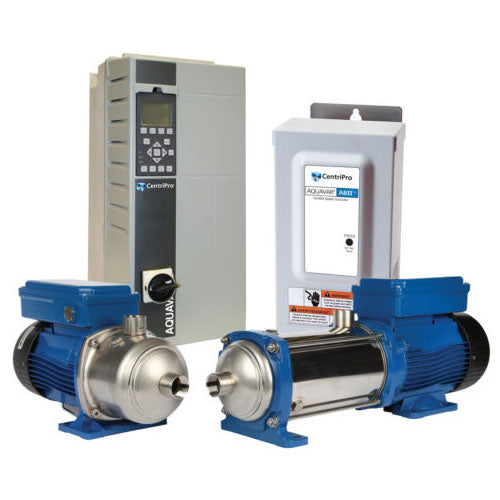

Goulds Pumps 3AVN310HM03 Aquavar e-ABII Booster System (3 HP, 1.5" Suction, 230 V, Single Phase, e-HM Booster Pump, Aquavar IPC Controller)
Goulds Pumps 3AVN310HM03 Aquavar e-ABII Booster System (3 HP, 1.5" Suction, 230 V, Single Phase, e-HM Booster Pump, Aquavar IPC Controller)
SKU:3AVN310HM03
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Goulds 3AVN310HM03, Constant Pressure Booster System with Pump Controller and Tank Type, Aquavar e-ABII Series, 3 HP, 1.5" Suction (NPT), 230 V, Single Phase, e-HM Booster Pump, Aquavar IPC Outdoor Speed Controller,
| Applications | |
| The e-AB2 variable speed pump controller and complete booster package kits, provide an economical answer for municipal water district customers with low water pressure. Both domestic and light commercial applications can benefit. As water use increases, the controller changes pump speed to maintain pressure. Large supply tanks are eliminated and less wear and tear on your pump and motor. Think of it as Cruise Control for your pump! The e-AB2 is available with a range of flow rates to handle homes with up to four baths, irrigation, filtration and fire suppression systems. Light commercial applications up to 100 GPM at 55 PSI boost. The e-AB2 is available as either a separate controller or as part of a complete pump package with everything you need to plumb it to a domestic water line. | |
| Features | |
| 1 HP thru 5 HP - Pressure Booster Packages | |
| 1AB2 and 2AB2 Prewired Pump/Controller Kits | |
| Programmed to motor electrical characteristics; just select set pressure. | |
| Application specific Start-Up Genie guides you through quick and easy commissioning | |
| Removable, graphical control panel with display | |
| Alarm Log records the last 5 alarms | |
| Hand on, Auto on, and Off buttons for easy pump operation at the keypad No toggling between local and remote operation! | |
| Capable of controlling up to 2 fixed speed pumps, with one standard drive | |
| Duplex variable speed pumping control with auto lead/lag and alternate | |
| **All pumps are equipped with three-phase motors** | |
| All controllers output three-phase, 230 Volt power | |
|
Specifications |
|
|
Brand
|
Goulds
|
|
Catalog Number
|
3AVN310HM03
|
|
Type
|
Constant Pressure Booster System with Pump Controller
|
|
Series
|
Aquavar e-ABII
|
|
Pump Model Included
|
10HM03N22T6PBQE
|
|
Controller Model Included
|
AVA10030C0F0X0X1
|
|
AG5 Included
|
100 lb Pressure Gauge
|
|
HP
|
3
|
|
Suction (NPT)
|
1.5"
|
|
Discharge (NPT)
|
1.25"
|
|
Voltage
|
230
|
|
Phase
|
Single
|
|
Booster Pump
|
e-HM
|
|
Tank
|
Not Included
|
|
Outdoor Speed Controller
|
Aquavar IPC
|
|
Nema Rating
|
3R
|
|
Stages
|
3
|
|
Transducer
|
Included
|
|
