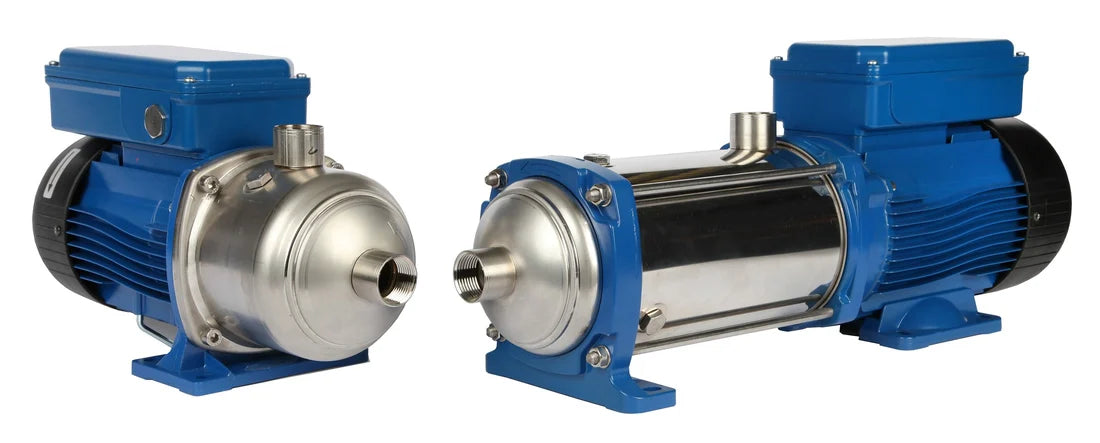

Goulds Pumps 1HM06N05M6BBQE Multi-Stage Pump (3/4 HP, 1 Phase, 115 Voltage, 6 Stage, 147 Max PSI)

Goulds Pumps 1HM06N05M6BBQE Multi-Stage Pump (3/4 HP, 1 Phase, 115 Voltage, 6 Stage, 147 Max PSI)

👁️ [COUNT] People are currently viewing this product.

1HM06N05M6BBQE

$1,512.60 USD
$2,521.00 USD $1,512.60 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

Goulds Pumps 1HM06N05M6BBQE , Multi-Stage Pumps Type, 3/4 HP, 1 Phase, 115 Voltage, 6 Stage, 147 Max PSI, TEFC Enclosure, Stainless Steel,

Applications
Industrial washing and cleaning, Food and beverage, Industrial refrigeration, Water treatment, OEM custom applications
Features
Up to 15% more efficient. The new e-HM is based on the innovative platform and market-proven hydraulics of our e-SV vertical multistage pumps, delivering energy efficiency that outperforms the competition by up to 15%.
Powerful versatility. The e-HM can be configured for a wide range of food and beverage applications, including support for flows of 2+ gallons. With two designs, six models and modular construction, its completely customizable.
Compact, durable design. The smaller motor and space-saving design lets the e-HM fit where you need it. The balanced impeller reduces axial thrust 40%, extending motor bearing life. And a 20% thicker pump body enhances durability, increasing reliability.
Short lead time. U.S. assembly and fast shipping ensure you get the right pump at the right time.
More performance for less cost. The e-HM is a high-performance pump with full pressure-boosting capabilitiesusing significantly less energy. Do more while spending less.

Specifications

Brand
Goulds Pumps
Catalog Number
1HM06N05M6BBQE
Type
Multi-Stage Pumps
Series
e-HM
HP
3/4
Phase
1
Voltage
115
Stage
6
Max PSI
147
Hz
60
Enclosure
TEFC
RPM
3500
Nominal Flow
10
Flow Range
3-12
Maximum Head
520
Piping Connections (NPT)
1" x 1"
Pump Body
Stainless Steel
Notes
See Support Documents

Support Documents (pdf)
