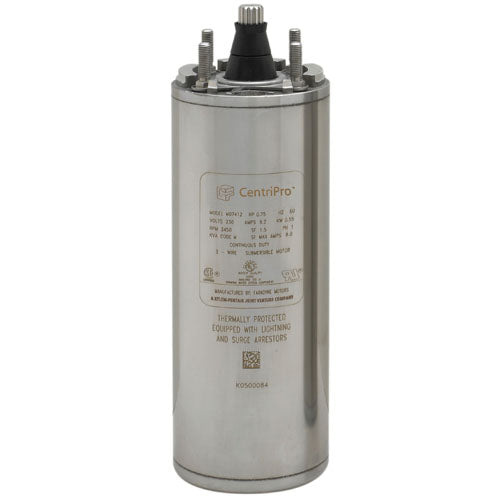

Goulds M10422 CentriPro 4" Submersible Well Motor (1 HP, 1 Phase, 230 Volts, 2 Wire, Stainless Steel Casing)
Goulds M10422 CentriPro 4" Submersible Well Motor (1 HP, 1 Phase, 230 Volts, 2 Wire, Stainless Steel Casing)
[COUNT] shoppers are looking at this right now
No reviews
SKU:M10422
Precio habitual
$832.80 USD
Precio habitual
$1,388.00 USD
Precio de oferta
$832.80 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
View Price in Cart
No se pudo cargar la disponibilidad de retiro
M10422 Goulds 4" Motor (1 HP, 1 Phase, 230 Volts, 2 Wire)
| Applications | |
| Below ground well pump motor for residential and small municipal water supply as well as light irrigation applications. | |
| Features | |
| Stainless Steel Casing | |
| Stainless Steel Parts | |
| Water Lubricated | |
| Lightning/Surge Protection built-in | |
| CSA Certified | |
| * Motor-end only. The wet end is not included. | |
Tech Specs | |
Brand |
Goulds Pumps |
Model Number |
M10422 |
Brand |
Goulds Pumps |
Type |
2 Wire Submersible Pump Motor |
HP |
1 |
Phase |
1 |
Volts |
230 |
Wire Qty. |
2 Wire |
Amps |
7.9 |
Full Load Watts |
1679 |
Thrust Rating |
700 |
Service Factor |
1.4 |
Locked Rotor Amps |
21.7 |
Winding Resistance |
4.2-5.2 |
Full Load Efficiency % |
58 |
Service Factor Efficiency % |
65 |
Full Load Power Factor % |
94 |
Service Factor Power Factor % |
96 |
KVA Code |
F |
Length (in) |
13.3 |
Service Factor Watts |
1990 |
Amps |
9.1 |
Notes |
See Goulds Literature |
Support Documents (pdf) | ||||
| Goulds Literature | ||||
