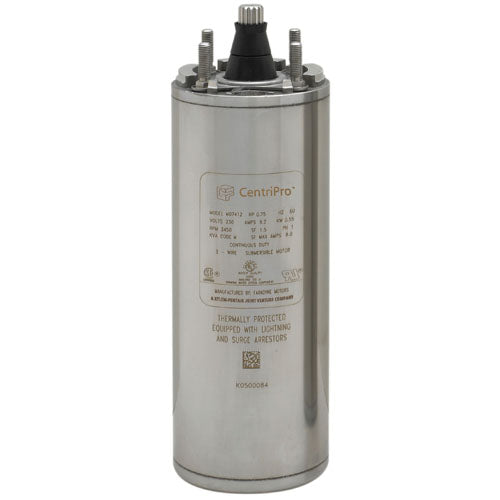

Goulds M05422, CentriPro 4" Motor (1/2 HP, 1 Phase, 230 Volts, 2 Wire)

Name: Goulds M05422, CentriPro 4" Motor (1/2 HP, 1 Phase, 230 Volts, 2 Wire)
Brand: Goulds Pumps
SKU: M05422
Availability: InStock

SKU:M05422

$0.00 USD

~~$815.00 USD~~ $0.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

M05422 Goulds 4" Motor (1/2 HP, 1 Phase, 230 Volts, 2 Wire)

Applications
Below ground well pump motor for residential and small municipal water supply as well as light irrigation applications.

Features
Stainless Steel Casing
Stainless Steel Parts
Water Lubricated
Lightning/Surge Protection built-in
CSA Certified
* Motor-end only. The wet end is not included.

Tech Specs
Brand	Goulds Pumps
Model Number	M05422
Brand	Goulds Pumps
Type	2 Wire Submersible Pump Motor
HP	1/2
Phase	1
Volts	230
Wire Qty.	2 Wire
Amps	3.7
Full Load Watts	834
Thrust Rating	700
Service Factor	1.6
Locked Rotor Amps	19.5
Winding Resistance	4.5-5.2
Full Load Efficiency %	50
Service Factor Efficiency %	62
Full Load Power Factor %	97
Service Factor Power Factor %	99
KVA Code	K
Length (in)	11
Service Factor Watts	1073
Amps	4.7
Notes	See Goulds Literature

Support Documents (pdf)
Goulds Literature

Questions about this product? Contact our team!
Product images may be generic.
