Goulds Pumps

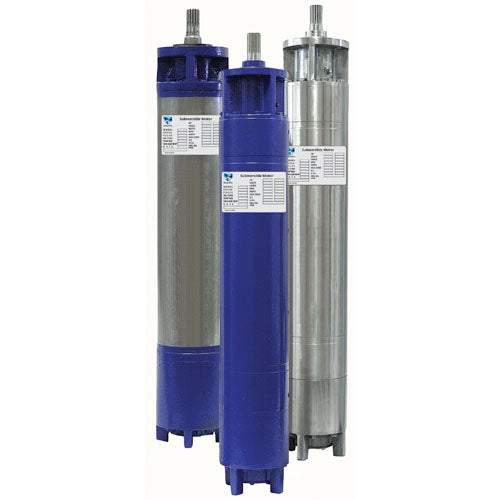

Goulds 6M202, CentriPro 6" Motor (20 HP, 3 Phase, 230 Volts, 6" Diameter)

Name: Goulds 6M202, CentriPro 6" Motor (20 HP, 3 Phase, 230 Volts, 6" Diameter)
Brand: Goulds Pumps
SKU: 6M202
Price: 3943.13 USD
Availability: InStock

SKU:6M202

$3,943.13 USD

~~$7,531.00 USD~~ $3,943.13 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

6M202 Goulds Motor (20 HP, 3 Phase, 230 Volts, 6" Diameter)

Applications
Below ground well pump motor for residential and small municipal water supply as well as light irrigation applications.

Features
Insulated
Heat Resistant
High Torque
Carbon Sleeve Bearings
Corrosion Protection
Baked Epoxy Coating

Tech Specs
Brand	Goulds Pumps
Model Number	6M202
Brand	Goulds Pumps
Type	Goulds 6" Well Pump Motor
HP	20
Phase	3
Volts	230
Amps	54
kW	15
S.F.	1.15
Rated Input Watts	17930
Service Factor Watts	20650
L.R. Amps	392
Class 14 Starter	GSGC
Motor Dia. vs Flange Dia.	6"
Notes	See Goulds Literature

Support Documents (pdf)
Goulds Literature

Questions about this product? Contact our team!
Product images may be generic.

Ver todos los detalles
