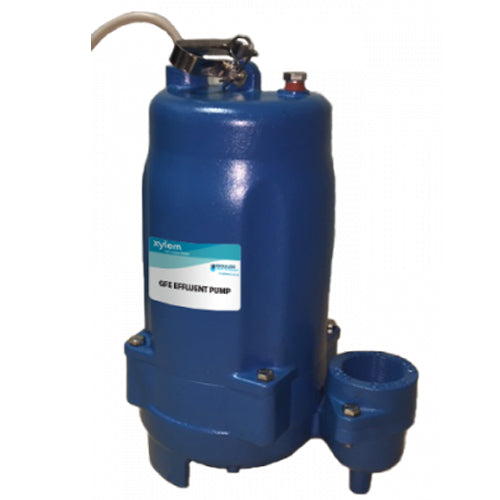

GFE0511M Goulds Pumps Cast Iron Effluent Pumps (1/2 HP, 115 Volts)
GFE0511M Goulds Pumps Cast Iron Effluent Pumps (1/2 HP, 115 Volts)
SKU:GFE0511M
Precio habitual
$1,037.20 USD
Precio habitual
$1,333.00 USD
Precio de oferta
$1,037.20 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
Goulds Pumps GFE0511M, GFE Series , 1/2 HP, 115 Volts, Not Supplied Float Switch Style,
| Applications | |
| Specifically designed for the following uses: Homes, farms, trailer courts, motels, schools, hospitals, small business, effluent systems. | |
| Features | |
| Motor is fully submerged in high-grade turbine oil for lubrication and efficient heat transfer | |
| Class B insulation | |
| Impeller: Cast iron, with dual vanes. Balanced for smooth operation. 3/4 HP, high head is glass reinforced thermoplastic | |
| Casing: Cast iron volute type for maximum efficiency. 1.5" or 2" NPT discharge (with included adapter) | |
| Mechanical Seal: Silicon Carbide vs. Silicon Carbide sealing faces. Stainless steel metal parts, BUNA-N elastomers | |
| Shaft: Corrosion-resistant, stainless steel. Threaded design | |
| Fasteners: 300 series stainless steel | |
| Capable of running dry without damage to components | |
| Designed for continuous operation when fully submerged | |
Specifications | |
Brand |
Goulds Pumps |
Catalog Number |
GFE0511M |
Type |
Cast Iron Effluent Pumps |
Series |
GFE Series |
HP |
1/2 |
Volts |
115 |
Max. Amps |
14.5 |
Locked Rotor Amps |
46 |
Min. Circuit Breaker |
15A |
Phase |
1 |
RPM |
3400 |
Impeller Diameter (in.) |
3.56 |
Float Switch Style |
Not Supplied |
Cord Length (ft.) |
20' |
Power Cable Size |
14/3 |
Discharge Connection (in.) |
1.5" or 2" NPT |
Discharge Adapter |
Included |
Max. Solids Size |
3/4" |
Shipping Weight (lbs.) |
64.5 |
Height |
16-1/2" |
Width |
11-1/4" |
Temperature |
104 F. CONT. / 140 F. INTER. |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
