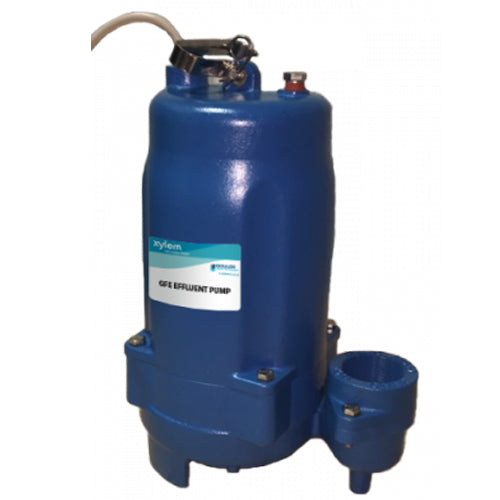

GFE0511 Goulds Cast Iron Effluent Pumps (1/2 HP, 115 Volts, Vertical Float)
GFE0511 Goulds Cast Iron Effluent Pumps (1/2 HP, 115 Volts, Vertical Float)
[COUNT] shoppers are looking at this right now
No reviews
SKU:GFE0511
Precio habitual
$888.60 USD
Precio habitual
$1,481.00 USD
Precio de oferta
$888.60 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
View Price in Cart
No se pudo cargar la disponibilidad de retiro
Goulds Pumps GFE0511, GFE Series , 1/2 HP, 115 Volts, Vertical Float Switch Style,
| Applications | |
| Specifically designed for the following uses: Homes, farms, trailer courts, motels, schools, hospitals, small business, effluent systems. | |
| Features | |
| Motor is fully submerged in high-grade turbine oil for lubrication and efficient heat transfer | |
| Class B insulation | |
| Impeller: Cast iron, with dual vanes. Balanced for smooth operation. 3/4 HP, high head is glass reinforced thermoplastic | |
| Casing: Cast iron volute type for maximum efficiency. 1.5" or 2" NPT discharge (with included adapter) | |
| Mechanical Seal: Silicon Carbide vs. Silicon Carbide sealing faces. Stainless steel metal parts, BUNA-N elastomers | |
| Shaft: Corrosion-resistant, stainless steel. Threaded design | |
| Fasteners: 300 series stainless steel | |
| Capable of running dry without damage to components | |
| Designed for continuous operation when fully submerged | |
Specifications | |
Brand |
Goulds Pumps |
Catalog Number |
GFE0511 |
Type |
Cast Iron Effluent Pumps |
Series |
GFE Series |
HP |
1/2 |
Volts |
115 |
Max. Amps |
14.5 |
Locked Rotor Amps |
46 |
Min. Circuit Breaker |
15A |
Phase |
1 |
RPM |
3400 |
Impeller Diameter (in.) |
3.56 |
Float Switch Style |
Vertical |
Cord Length (ft.) |
20' |
Power Cable Size |
14/3 |
Discharge Connection (in.) |
1.5" or 2" NPT |
Discharge Adapter |
Included |
Max. Solids Size |
3/4" |
Shipping Weight (lbs.) |
64.5 |
Height |
16-1/2" |
Width |
11-1/4" |
Temperature |
104 F. CONT. / 140 F. INTER. |
Notes |
See Support Documents |
Support Documents (pdf) |
