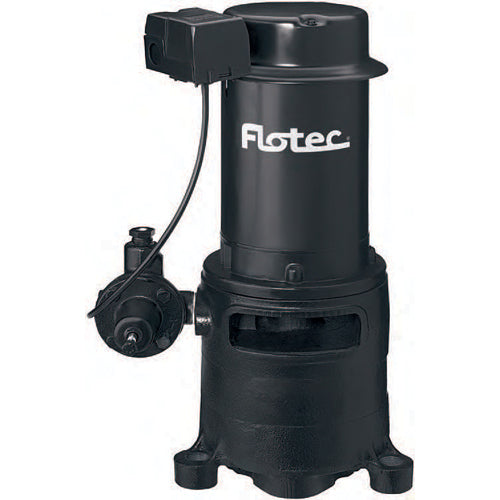

FP4432-01 Flotec Vertical Deep Well Jet Pump (1 HP, 12 GPM Max, 230V / 115V, 60 Hz, 1-1/4" Suction, 1" Discharge)

Flotec FP4432-01, Vertical Deep Well Jet Pump , , 1 HP, 12 GPM Max Capacity, 230V / 115V, 60 Hz Voltage, 1-1/4" Suction, 1" Discharge,

Applications
Vertical deep well jet pump can be used in 4" diameter or larger wells up to 260', or in 2" diameter wells up to 180'.
Features
Superior performance at depths to water of 50' or more
Rugged, heavy-duty cast iron pump housing
Ready-to-install 230 volt motor - see manual for 115 volt conversion
High Capacity Up to 12 gallons per minute at 50 PSI
Prewired Factory-Set 40/60 Pressure Switch

Specifications
Brand	Flotec
Catalog Number	FP4432-01
Type	Vertical Deep Well Jet Pump
HP	1
Max Capacity	12 GPM
Flow ar 50' lift and 40 PSI	11 GPM
AMP Draw	1" NPT
Voltage	230V / 115V, 60 Hz
Recommended Breaker	15 amp for 230v / 20 amp for 115v
Suction	1-1/4"
Discharge	1"
Construction	Durable Cast Iron
Performance	At depths to water of 260'
Jet Kit	Sold Separately
Warranty	1 year
