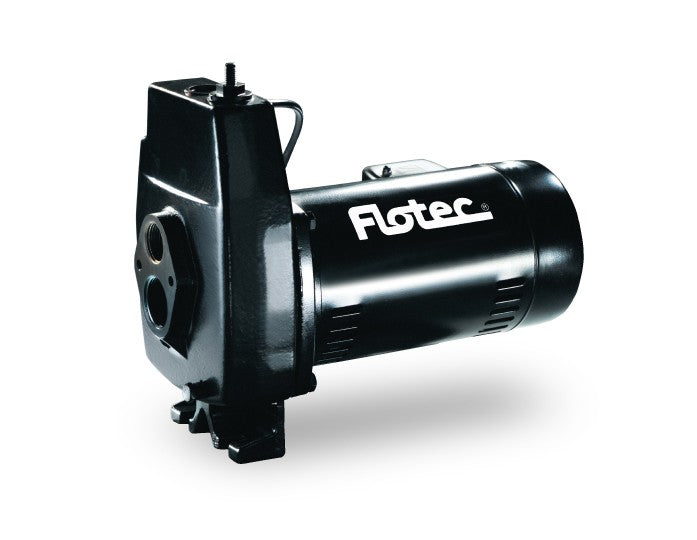

FP4222 Pentair Flotec 3/4 HP Cast Iron Convertible Jet Pump
Cast iron convertible jet pumps can be used in shallow or deep well applications in " diameter wells or larger and are pre-set for 30-50 PSI operation.
KEY FEATURES
- Superior performance at depths to water of 100' or less
- Rugged, heavy-duty pump housing
- Ready-to-install 230 volt motor - see manual for 115 volt conversion
- Pressure switch pre-wired with 30-50 PSI pressure setting
Specifications
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: 3/4
MAXIMUM CAPACITY: 11.9 GPM (shallow setup)
FLOW at 10' LIFT and 40 PSI: 10.8 GPM (shallow setup)
MAX LIFT: 25' w/ shallow setup / 100' w/ deep well setup
MAXIMUM PRESSURE: 60 psi w/ shallow setup / 54 psi w/ deep setup
PRESSURE SWITCH SETTING: 30/50
SUCTION PIPE SIZE: 1-1/4" NPT
DISCHARGE PIPE SIZE: 1" NPT
AMP DRAW (full load): 6.1 amps on 230v / 12.2 amps on 115v
VOLTAGE: 230v / 115v, 60 Hz
RECOMMENDED BREAKER: 15 amp for 230v / 20 amp for 115v
MAXIMUM WATER TEMPERATURE: 140 F (60 C)
