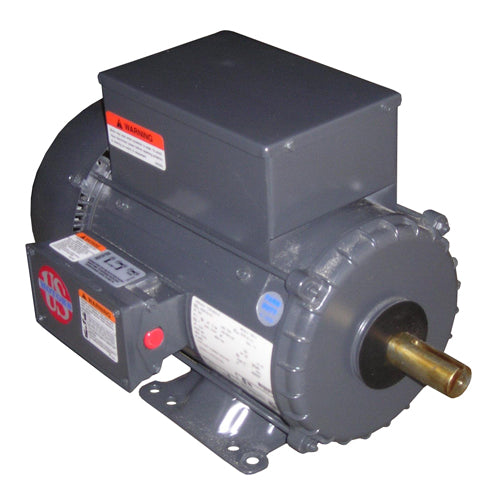

FD32CM2PH US Motor Special Application Farm Motor (1.5 HP, TEFC, 1725 RPM, 115/230V, 56 Frame)
FD32CM2PH US Motor Special Application Farm Motor (1.5 HP, TEFC, 1725 RPM, 115/230V, 56 Frame)
[COUNT] shoppers are looking at this right now
No reviews
SKU:FD32CM2PH
Precio habitual
$333.47 USD
Precio habitual
$0.00 USD
Precio de oferta
$333.47 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
FD32CM2PH US Motor (1.5 HP - TEFC - 1725 RPM)
| Model_Number: | T063BJB1911015B |
| Catalog | FD32CM2PH |
| PRODUCT NAME: | 1.5 HP - - 1725 |
| PHASETYPE: | 1_PHASE |
| HORSEPOWER: | 1.5 |
| KILOWATTS: | 1.1 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115/230 |
| VOLTS : | 115 |
| VOLTS 2: | 230 |
| FRME : | 56 |
| SHAFT CODE: | H |
| STATOR DIAMETER: | 6.3 |
| STACK: | 4 |
| MOTOR TYPE: | SMA |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | REVERSIBLE |
| SERVICE FACTOR: | 1.15 |
| RUNCAPMFD: | 50 |
| RUNCAPVOLTS: | 370 |
| STARTCAPMFD: | 709 |
| SHIPPING WEIGHT: | 32 |
| BREAKDOWN TORQUE: | 195.7 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 277.7 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| KVA CODE LETTER: | K |
| LOCKED ROTOR AMPS: | 94.39 |
| NEMA NOMINAL EFFICIENCY: | 81 |
| FULL LOAD AMPS PRIMARY: | 16.2/8.1 |
| SERVICE FACTOR AMPS PRIMARY: | 17.6/8.8 |
