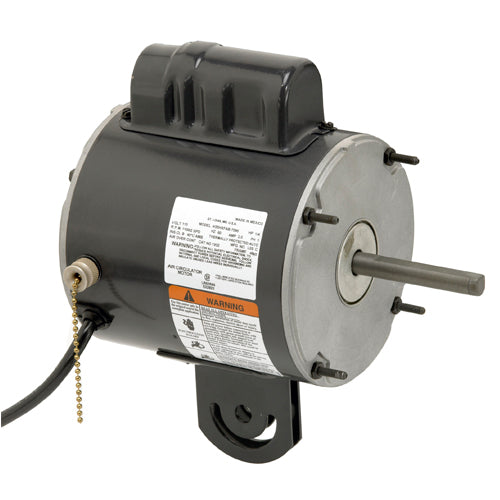

FD13AA2P4Z9 U.S. Motors Special Application Farm Motor (.33HP, 1700 RPM, 115/230V. 48 Frame, TEAO)
FD13AA2P4Z9 U.S. Motors Special Application Farm Motor (.33HP, 1700 RPM, 115/230V. 48 Frame, TEAO)
[COUNT] shoppers are looking at this right now
No reviews
SKU:FD13AA2P4Z9
Precio habitual
$293.77 USD
Precio habitual
$0.00 USD
Precio de oferta
$293.77 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
FD13AA2P4Z9 U.S. Motors Special Application Farm Motor (.33HP, 1700 RPM, 115/230V. 48 Frame, TEAO)
Model_Number
K055LKY3773022B
PRODUCT NAME
.33 HP - TEAO - 1700
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
TEAO
HORSEPOWER
.33
KILOWATTS
0.3
POLES
4
NUMBER SPEEDS
1
RPM
1700
HERTZ
60
VOLTS PRIMARY
115/230 V
VOLTS
115
VOLTS 2
230
FRME
48
SHAFT CODE
Z
STATOR DIAMETER
5.5
STACK
2
MOUNTING
RESILIENT
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CCW LEAD END REV
SERVICE FACTOR
1
RUNCAPMFD
10
RUNCAPVOLTS
370
SHIPPING WEIGHT
19
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
42.41
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
8.527
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
G
LOCKED ROTOR AMPS
15.2
NEMA NOMINAL EFFICIENCY
63.6
FULL LOAD AMPS PRIMARY
3.8/1.9
SERVICE FACTOR AMPS PRIMARY
3.8/1.9
