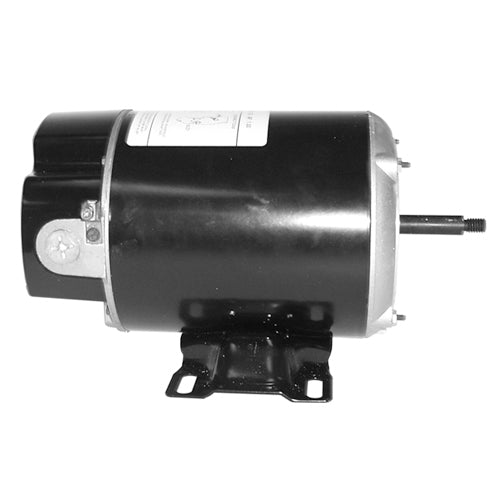

EZBN37 US Motor Thru-Bolt Pool & Spa Motor (1 HP, 3450 RPM, 60 Hz, 115V, 48 Frame)

EZBN37 US Motor Thru-Bolt Pool & Spa Motor (1 HP, 3450 RPM, 60 Hz, 115V, 48 Frame)

[COUNT] shoppers are looking at this right now

EZBN37

$240.97 USD
$0.00 USD $240.97 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

EZBN37 US Motor Thru-Bolt Pool & Spa Motor (1 HP, 3450 RPM, 60 Hz, 115V, 48 Frame)

Model_Number
R055FEC0342013J
PRODUCT NAME
1 HP - ODP - 3450
PHASETYPE
1_SPLIT PHASE START
MOTOR ENCLOSURE
ODP
HORSEPOWER
1
HORSEPOWER 2
0.125
KILOWATTS
7.6
POLES
2
POLES 2
4
NUMBER SPEEDS
2
RPM
3450
RPM 2
1725
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
2.5
MOUNTING
THRU BOLT W/BASE
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
50
ROTATION
CCW DRIVE END
SERVICE FACTOR
1
RUNCAPMFD
50
RUNCAPVOLTS
370
SHIPPING WEIGHT
21
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
E
