U.S. Motors

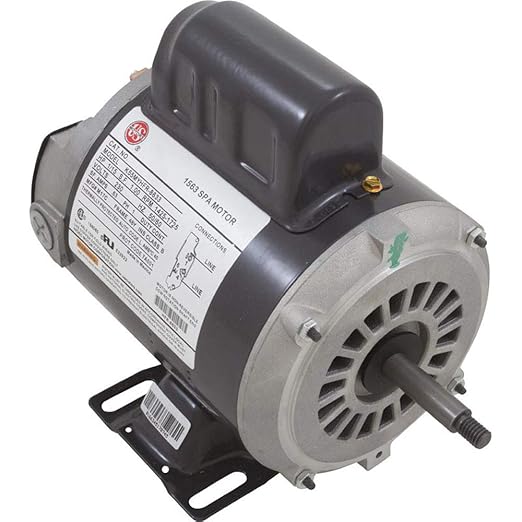

EV230 US Motor Thru-Bolt Pool & Spa Motor (0.067 HP, OPEN , 425 RPM)
EV230 US Motor Thru-Bolt Pool & Spa Motor (0.067 HP, OPEN , 425 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:EV230
Precio habitual
$134.37 USD
Precio habitual
$0.00 USD
Precio de oferta
$134.37 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
EV230 US Motor Thru-Bolt Pool & Spa Motor (0.067 HP, OPEN , 425 RPM)
| Model_Number: | K055NSY1168R13J |
| PRODUCT NAME: | .067 HP - OPEN - 1425 |
| PHASETYPE: | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE: | OPEN |
| HORSEPOWER: | .067 |
| KILOWATTS: | 0.1 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1425 |
| RPM 2: | 1725 |
| HERTZ: | 50 |
| HERTZ 2: | 60 |
| VOLTS PRIMARY: | 230 V |
| VOLTS : | 230 |
| STATOR DIAMETER: | 5.5 |
| STACK: | 1 |
| MOUNTING: | RIGID BASE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | CCW DRIVE END |
| SERVICE FACTOR: | 1 |
| RUNCAPMFD: | 5 |
| RUNCAPVOLTS: | 440 |
| SHIPPING WEIGHT: | 12 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 14.08 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 8.56 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | L |
| LOCKED ROTOR AMPS: | 1.75 |
| FULL LOAD AMPS PRIMARY: | .63 |
Compartir
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
