U.S. Motors

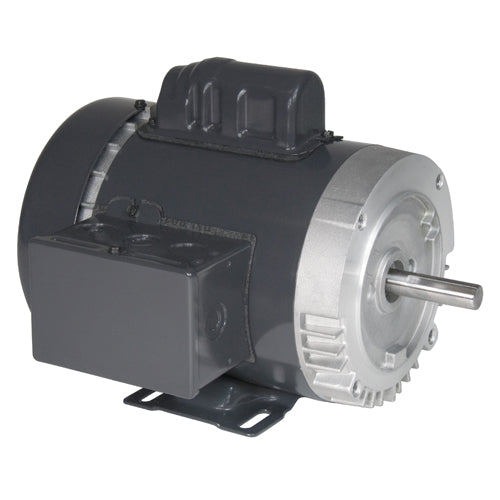

EU01 US Motor Special Application Commercial Pump Motor (.33 HP, TEFC, 3450 RPM, 208-115/230V, 56J Frame)

Name: EU01 US Motor Special Application Commercial Pump Motor (.33 HP, TEFC, 3450 RPM, 208-115/230V, 56J Frame)
Brand: U.S. Motors
SKU: EU01
Price: 274.94 USD
Availability: InStock

SKU:EU01

$274.94 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

EU01 US Motor Special Application Commercial Pump Motor (.33 HP, TEFC, 3450 RPM, 208-115/230V, 56J Frame)

Model_Number:	C063HMP5043013J
PRODUCT NAME:	.33 HP - TEFC - 3450
PHASETYPE:	1_CAPACITOR START
MOTOR ENCLOSURE:	TEFC
HORSEPOWER:	.33
KILOWATTS:	0.3
POLES:	2
NUMBER SPEEDS:	1
RPM:	3450
RPM 2:	2850
HERTZ:	60
HERTZ 2:	50
VOLTS PRIMARY:	115/208-230 & 110/220 V
VOLTS :	115
VOLTS 2:	208
VOLTS 3:	230
VOLTS 4:	110
VOLTS 5:	220
FRME :	56
SHAFT CODE:	J
STATOR DIAMETER:	6.3
STACK:	1.75
MOUNTING:	J-FACE/REM BASE
MOTOR TYPE:	FHP
OPPOSITE END BEARING:	6203
SHAFT END BEARING:	6203
AMBIENT:	40
ROTATION:	CW LEAD END
STARTCAPMFD:	297
SHIPPING WEIGHT:	17
THERMAL PROTECTION:	AUTOMATIC RESET
BREAKDOWN TORQUE:	43.05
BREAKDOWN TORQUE UOM:	OZFT
LOCKED ROTOR TORQUE:	33.18
LOCKED ROTOR TORQUE UOM:	OZFT
INSULATION CLASS:	B
LOCKED ROTOR AMPS:	39.53
FULL LOAD AMPS PRIMARY:	6.6/3.2-3.3
SERVICE FACTOR AMPS PRIMARY:	7.0/3.5-3.5

Questions about this product? Contact our team!
Product images may be generic.
