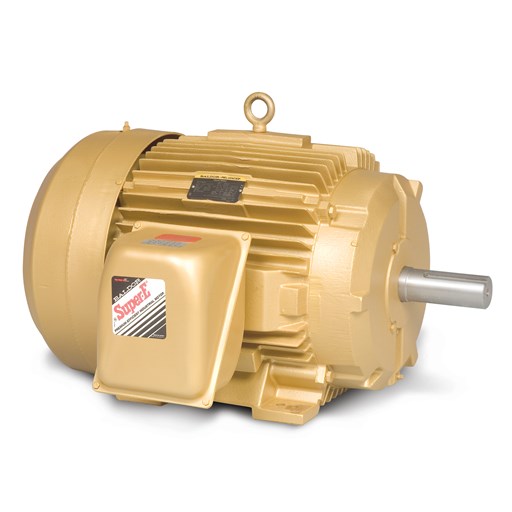

EM4314T-5 Baldor Motor (60HP, 1780RPM, 3PH, 60HZ, 364T, A3658M, TEFC,F)
EM4314T-5 Baldor Motor (60HP, 1780RPM, 3PH, 60HZ, 364T, A3658M, TEFC,F)
SKU:EM4314T-5
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Catalog Number EM4314T-5
Enclosure TEFC
Frame 364T
Frame Material Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 60.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 575.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals NEMA_PREMIUM
UR
NEMA PREMIUM
CCSAUSEEV
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Current @ Voltage 55.000 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Enclosure Modification Severe Duty Features
Feedback Device NO FEEDBACK
Heater Indicator No Heater
High Voltage Full Load Amps 55.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs No Lifting Lugs
Max Speed 2700 rpm
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Standards NEMA
Motor Type A3658M
Mounting Arrangement F1
Number of Poles 4
Overall Length 33.48 IN
Power Factor 84
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1780 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
