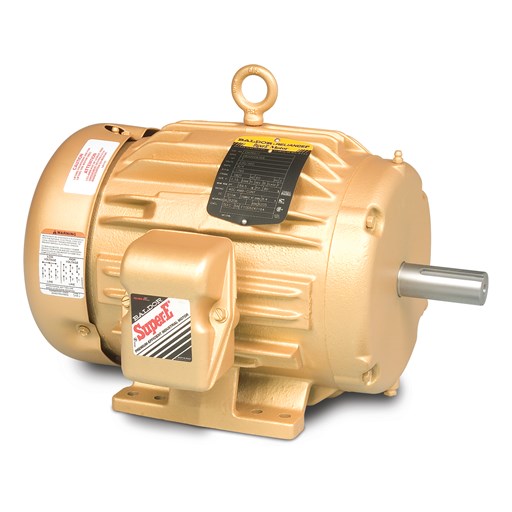

EM4115T-5 Baldor General Purpose Motor (50HP, 1775RPM, 3PH, 60HZ, 326T, 1272M, TEFC, F1)

Catalog Number EM4115T-5
Enclosure TEFC
Frame 326T
Frame Material Iron
Frequency 60.00 Hz
Motor Letter Type Three Phase
Output @ Frequency 50.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 575.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals NEMA_PREMIUM
UR
NEMA PREMIUM
CSA EEV
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 46.000 A @ 575.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.5 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 46.0 a
Insulation Class F
Inverter Code Inverter Ready
