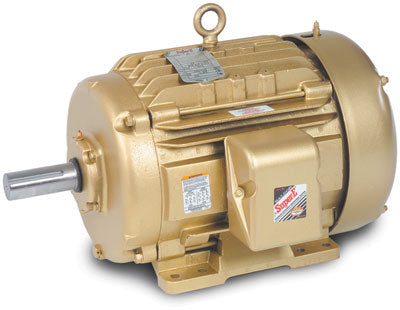

EM3764T Premium Efficient Super-E Baldor Industrial Motor, Three Phase, TEFC, 213T Frame (3 HP, 1200 RPM)

Baldor Motor EM3764T, HP: 3, RPM: 1200, Volts: 230/460, NEMA Frame : 213T, "C" Dim : 18.45, Full Load Amps : 4.5, Enclosure: TEFC, Foot Mounted, Motor Applications: Pumps, Compressors, Fans

Applications

Pumps, compressors, fans, conveyors, machine tools and othergeneral purpose three phase applications.

Features

Suitable for mounting in any position. Ball bearings, heavy-gauge steeland cast-iron frames, and gasketed conduit boxes. Class F insulation, 1.15 servicefactor, low-loss electrical grade lamination steel. EM Super-E motors have NEMAPremium efficiency and 3 year warranty. Motors with TR suffix have roller bearingsfor heavy belted loads.

Tech Specs.
Brand	Baldor Premium Efficient Super-E Motor
Model Number	EM3764T
HP	3
RPM	1200
Volts	230/460
"C" Dim	18.45
NEMA Frame	213T
Full Load Amps	4.5
Full Load Efficiency	89.5
Apx. Wt. (lb)	175
EISA Status	A
Phase	Three Phase
Motor Mount	Foot Mounted
Enclosure	TEFC
Type	General Purpose Industrial Motor
Warranty	3 Year Warranty
