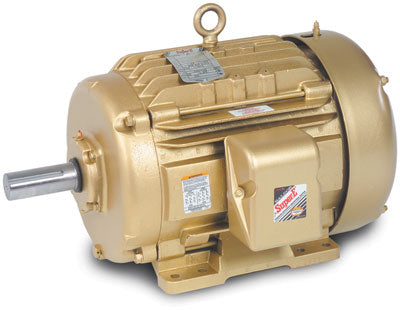

EM3704T Premium Efficient Super-E Baldor Industrial Motor (3 HP, 1160 RPM, 3 Phase, TEFC, 213T Frame, 230/460V)

Baldor Motor EM3704T, HP: 3, RPM: 1160, Volts: 230/460, NEMA Frame : 213T, "C" Dim : 19.02, Full Load Amps : 4.5, Enclosure: TEFC, Foot Mounted, Motor Applications: Pumps, Compressors, Fans

Applications

Pumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications.

Features

Suitable for mounting in any position. Ball bearings, heavy-gauge steel and cast-iron frames, and gasketed conduit boxes. Class F insulation, 1.15 service factor, low-loss electrical grade lamination steel. EM Super-E motors have NEMA Premium efficiency and 3 year warranty. Motors with TR suffix have roller bearings for heavy belted loads.

Tech Specs.
Brand	Baldor Premium Efficient Super-E Motor
Model Number	EM3704T
HP	3
RPM	1160
Volts	230/460
"C" Dim	19.02
NEMA Frame	213T
Full Load Amps	4.5
Full Load Efficiency	89.5
Apx. Wt. (lb)	132
EISA Status	A
Phase	Three Phase
Motor Mount	Foot Mounted
Enclosure	TEFC
Type	General Purpose Industrial Motor
Warranty	3 Year Warranty
