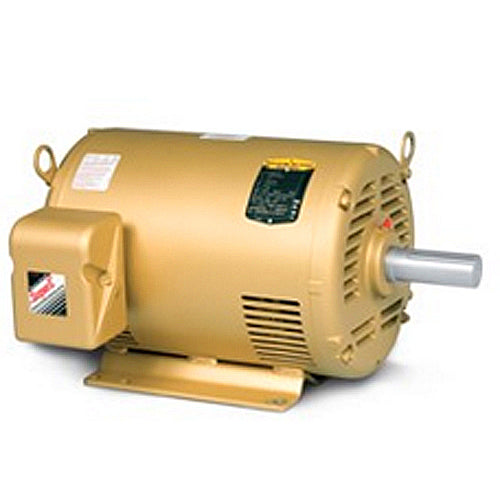

EM3311T-8 Baldor Motor (7.5HP, 1770RPM, 3PH, 200V, 60HZ, 213T, 3734M, OPSB, F)

EM3311T-8 Baldor Motor (7.5HP,1770RPM,3PH,60HZ,213T,3734M,OPSB,F)

Catalog Number EM3311T-8
Enclosure OPSB
Frame 213T
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group None
Haz Area Division Not Applicable
Motor Letter Type Three Phase
Output @ Frequency 7.500 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 200.0 V @ 60 HZ
Agency Approvals NEMA_PREMIUM
UR
NEMA PREMIUM
CSA EEV
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 23.300 A @ 200.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 23.3 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 3734M
Mounting Arrangement F1
Number of Poles 4
Overall Length 16.32 IN
Power Factor 77
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
